THE BRIDGE

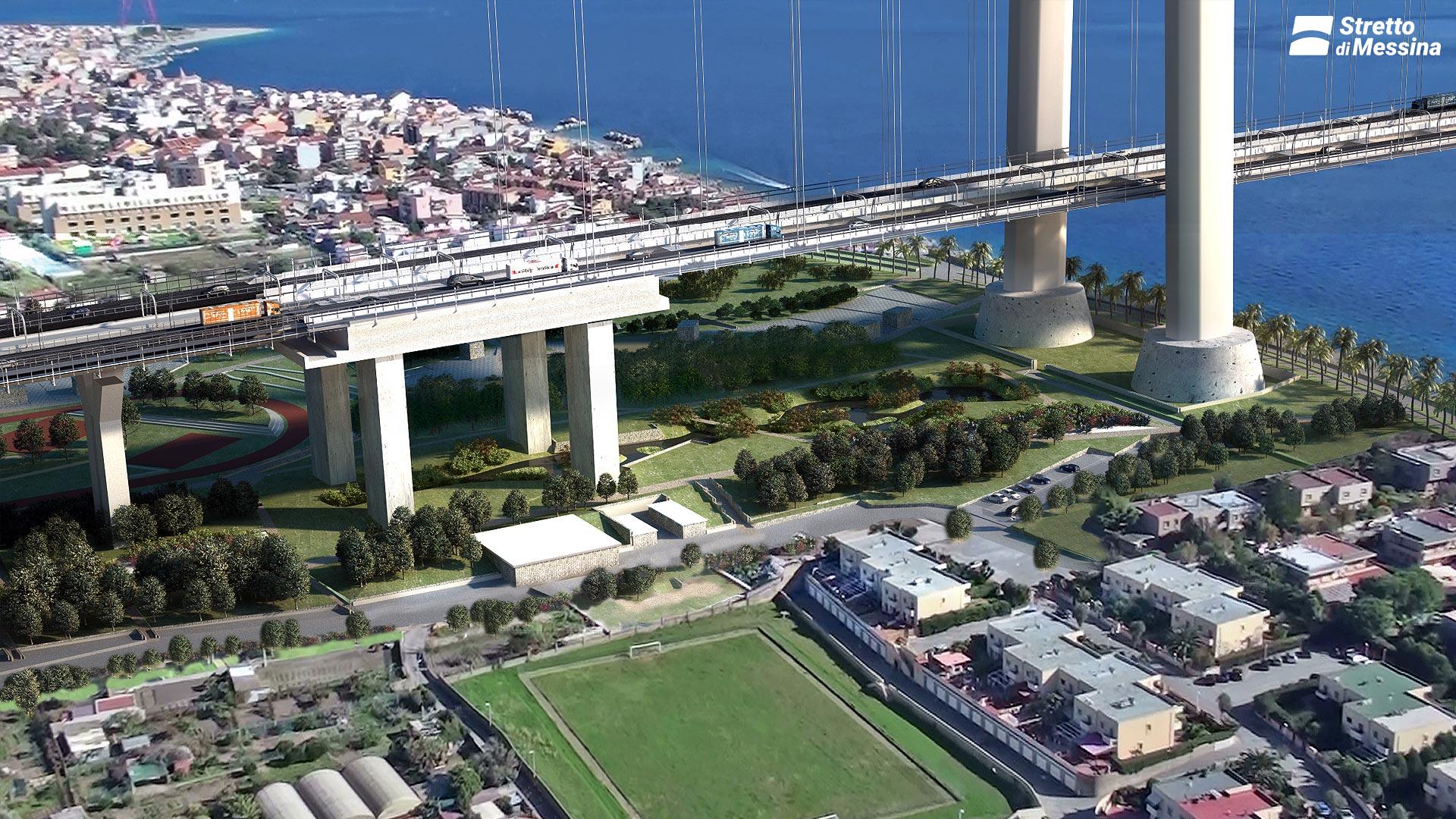

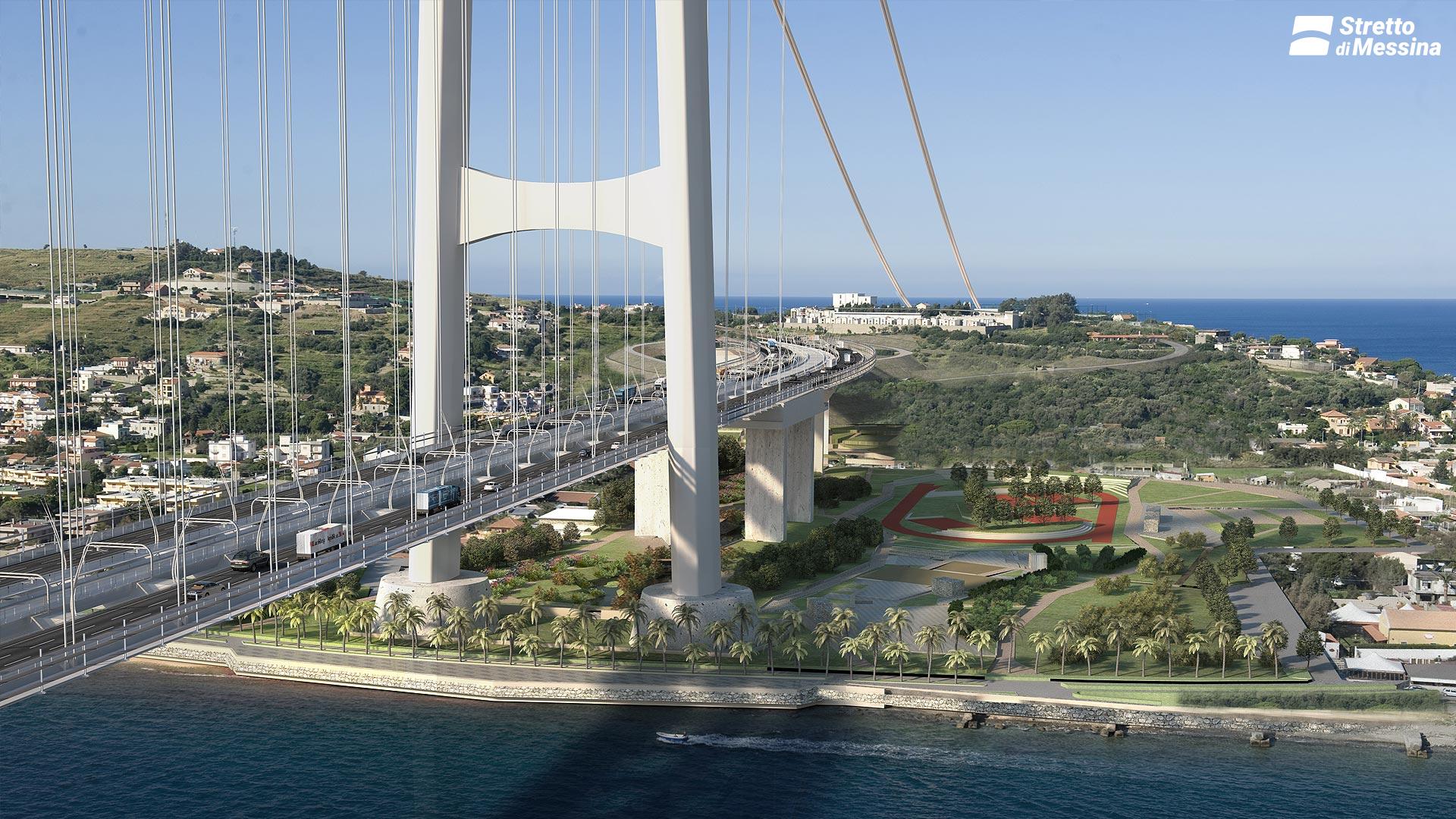

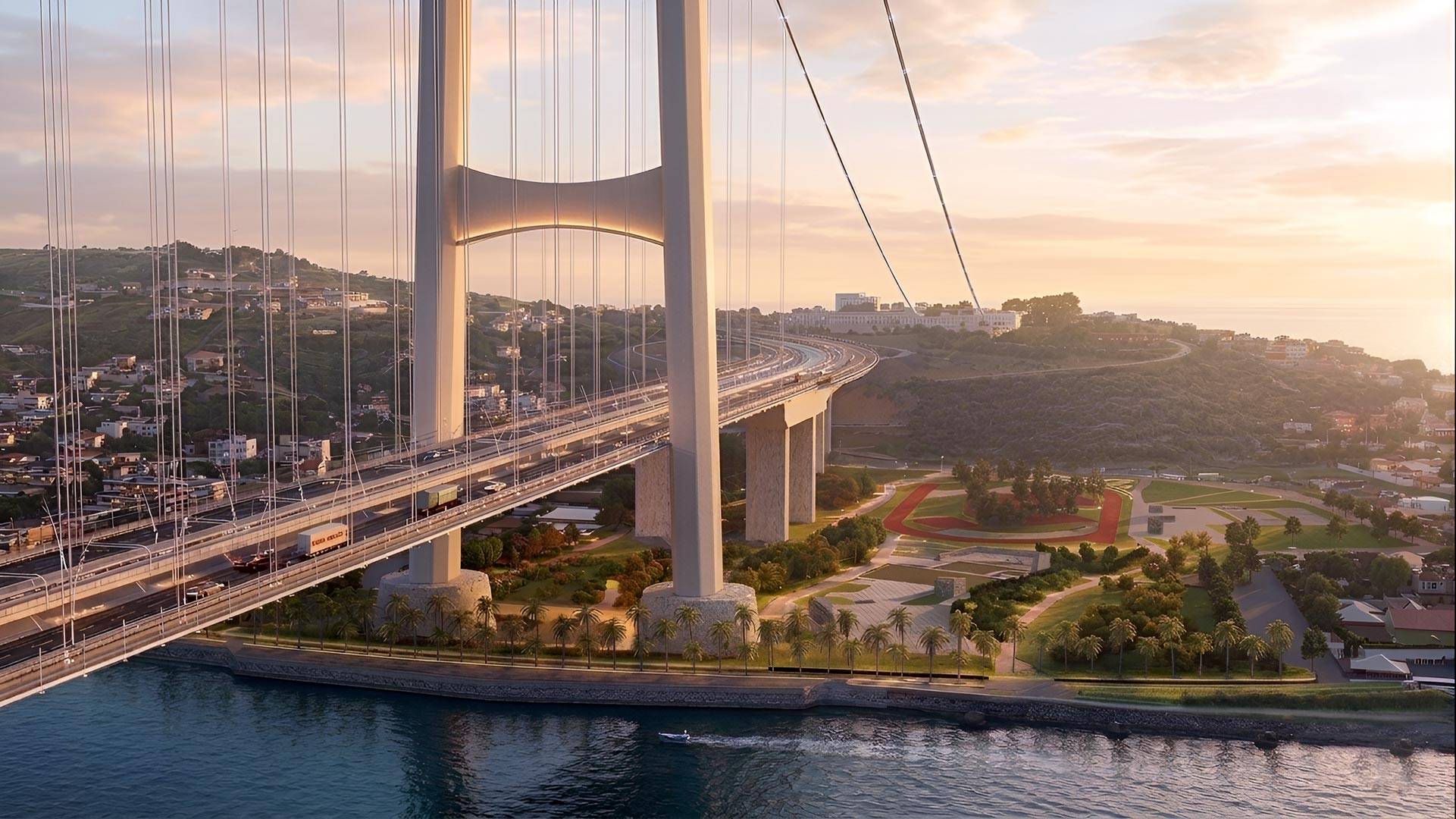

The Bridge will link Sicily and Calabria at the point where the two coastlines are closest, with a modern, reliable structure that will form the hub for an integrated infrastructure system serving the local area and its people.
Thanks to the deck’s wing-like profile, the Bridge is designed to withstand wind speeds of over 216 km per hour. The maximum wind speed recorded in the area in over twenty years of wind monitoring is 108 km per hour, at the level of the deck (70 metres), and 130 km an hour at a height of 128 metres (the position of the anemometric station). The wind tunnel tests carried out have enabled us to ensure a comfortable crossing, allowing traffic to continue to use the bridge even in high winds. From a seismic viewpoint, the Bridge is able to withstand an earthquake of 7.1 on the Richter scale (comparable to the quake that struck Messina in 1908).

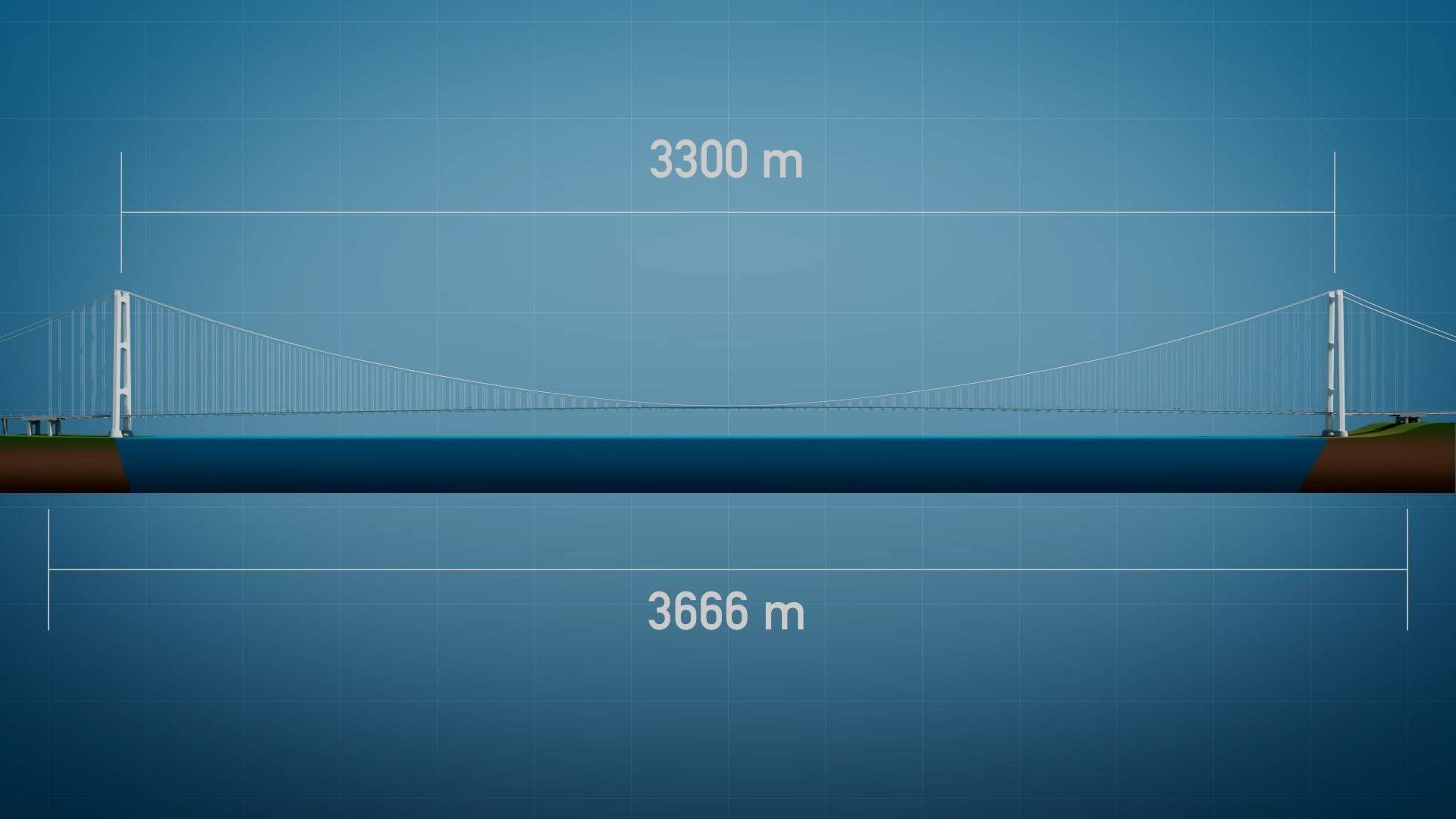

- Total length between the expansion joints: 3,666 metres
- 3 road lanes in each direction (an overtaking lane, a normal driving lane and an emergency lane)
- 2 rail tracks
- 2 service lanes
- maximum capacity: 200 trains a day – 6,000 vehicles an hour
- open 365 days a year, 24 hours a day
- a useful life of 200 years

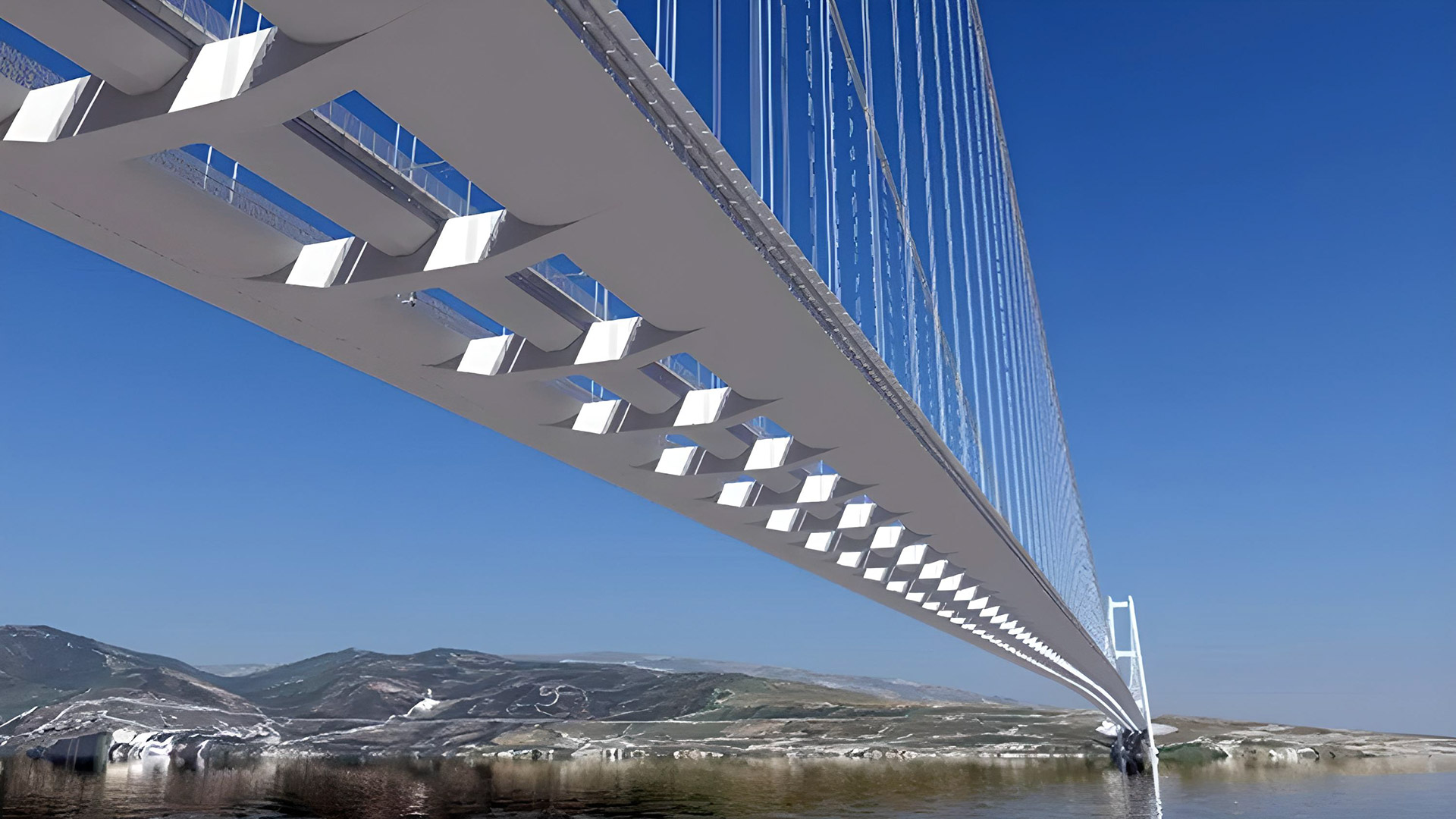

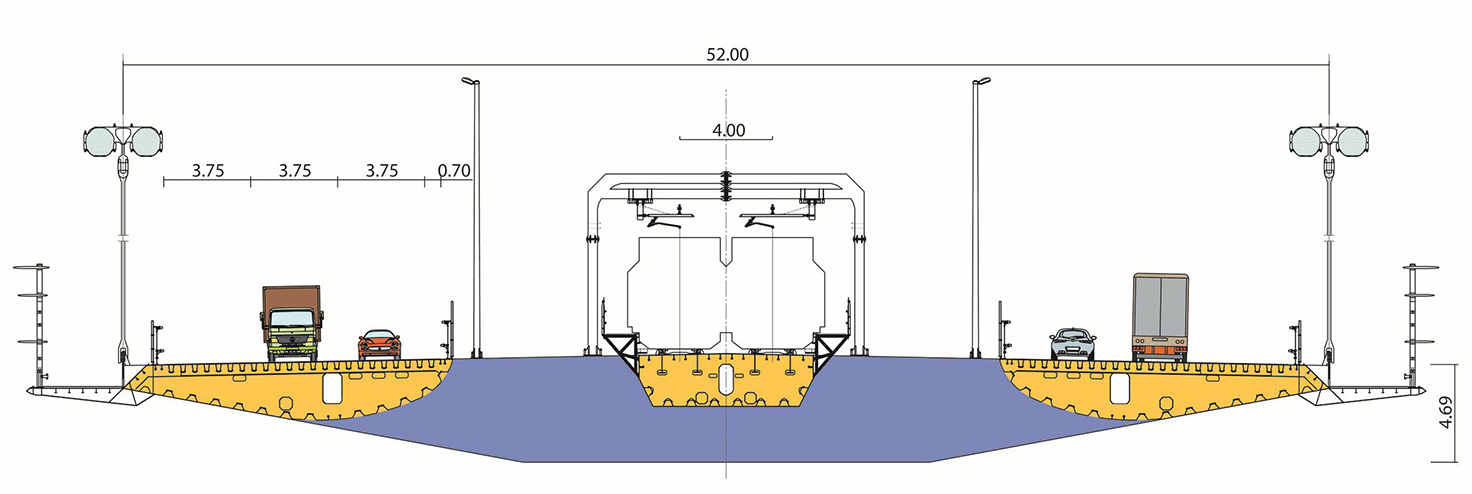

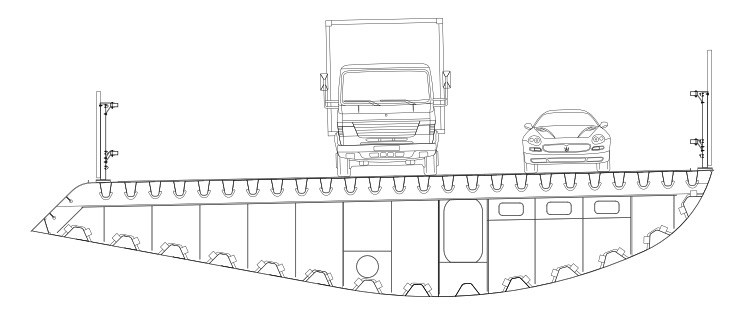

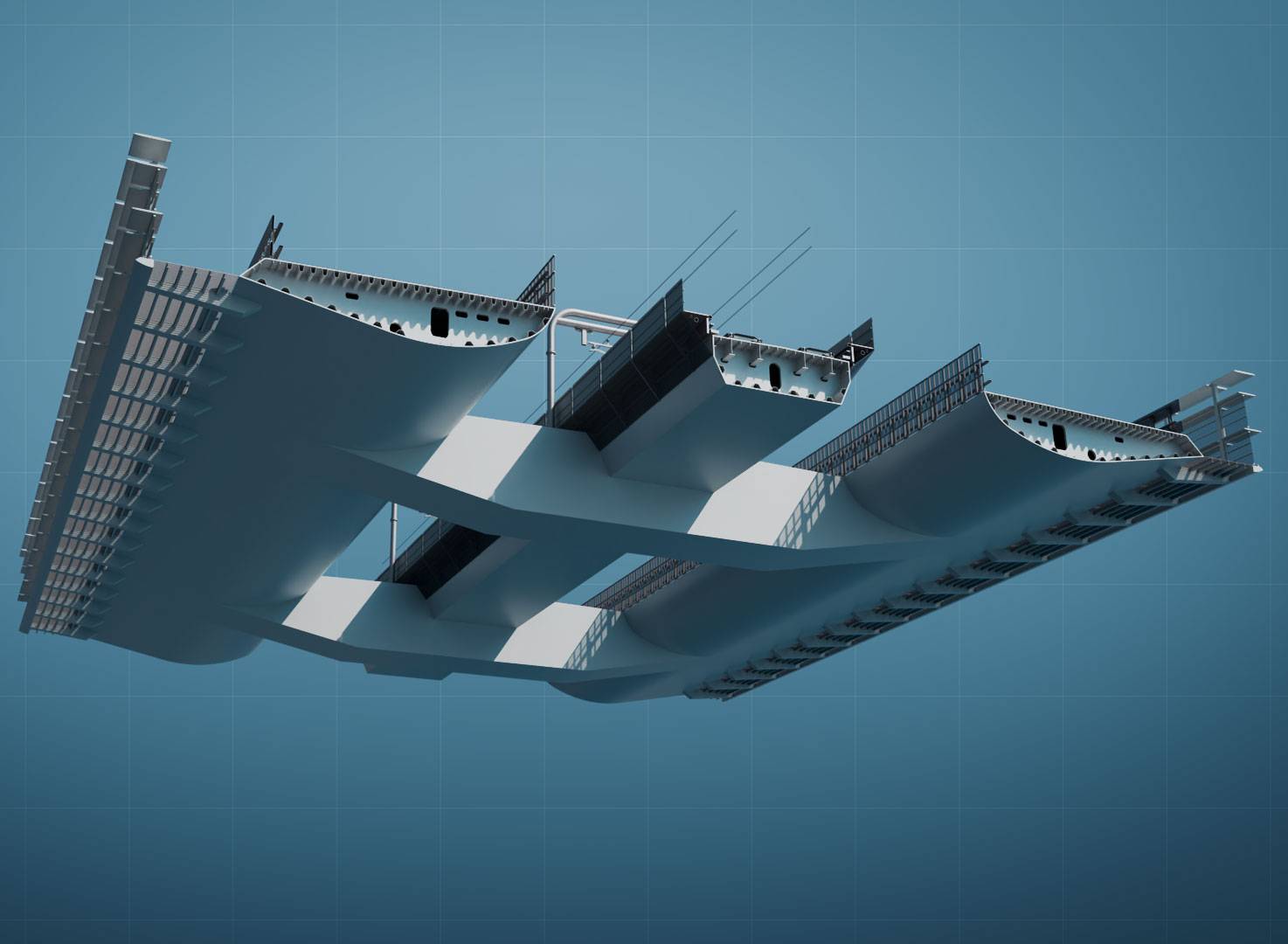

THE DECK

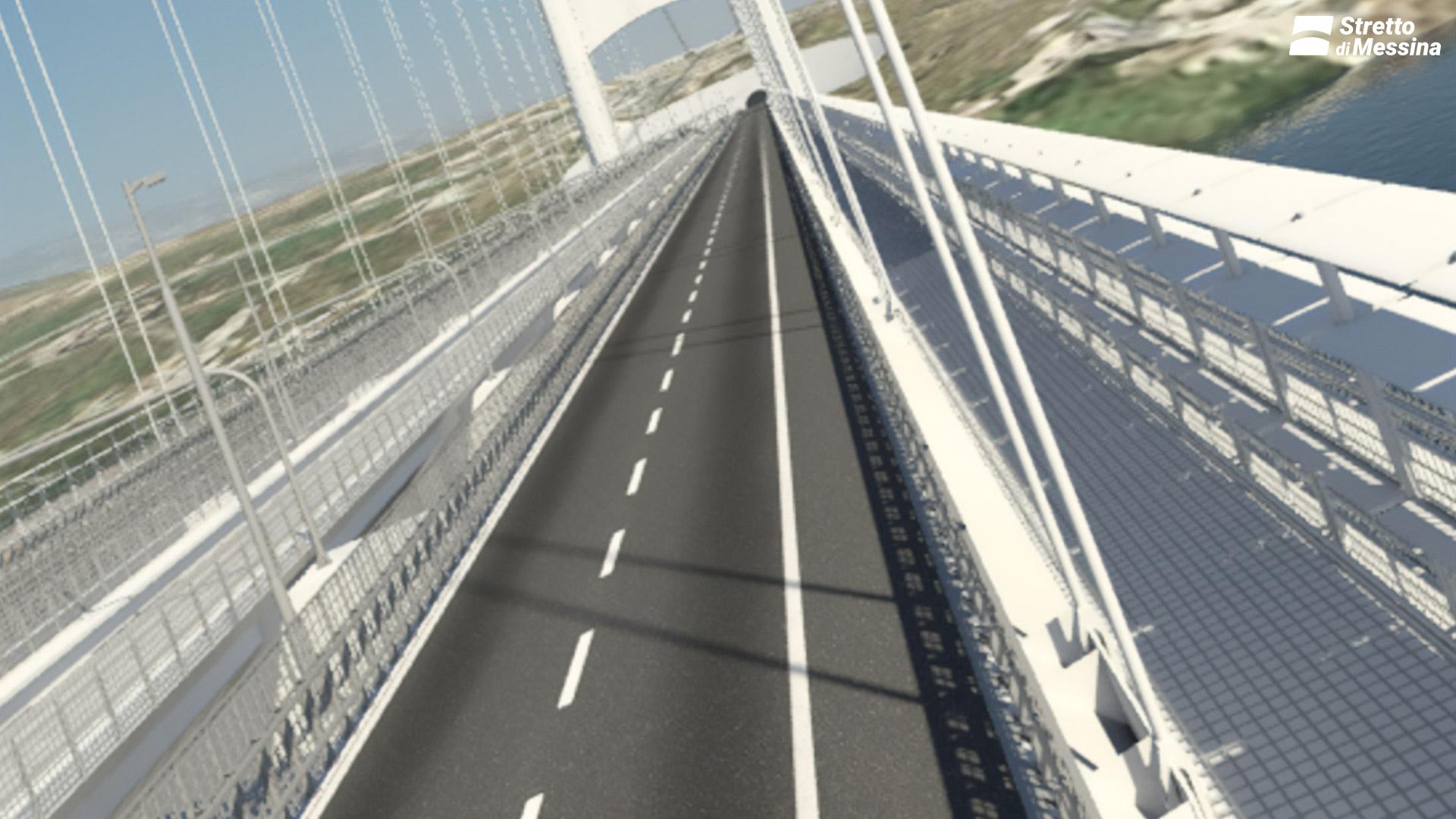

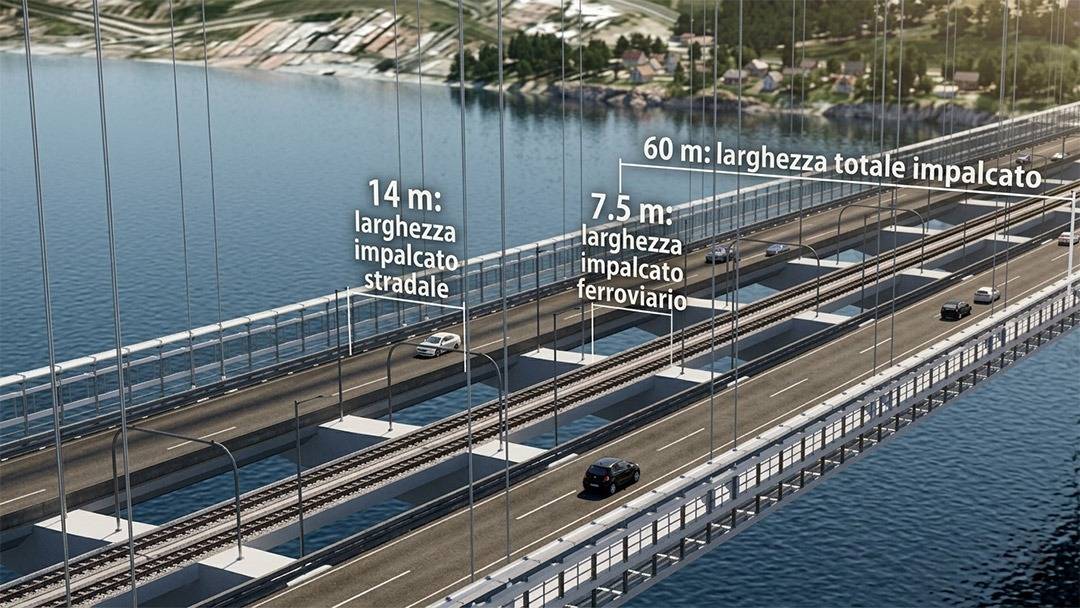

- A steel, multi-beamed, wing-like deck (universally known as “Messina style”) that can withstand wind speeds of 216 km an hour.

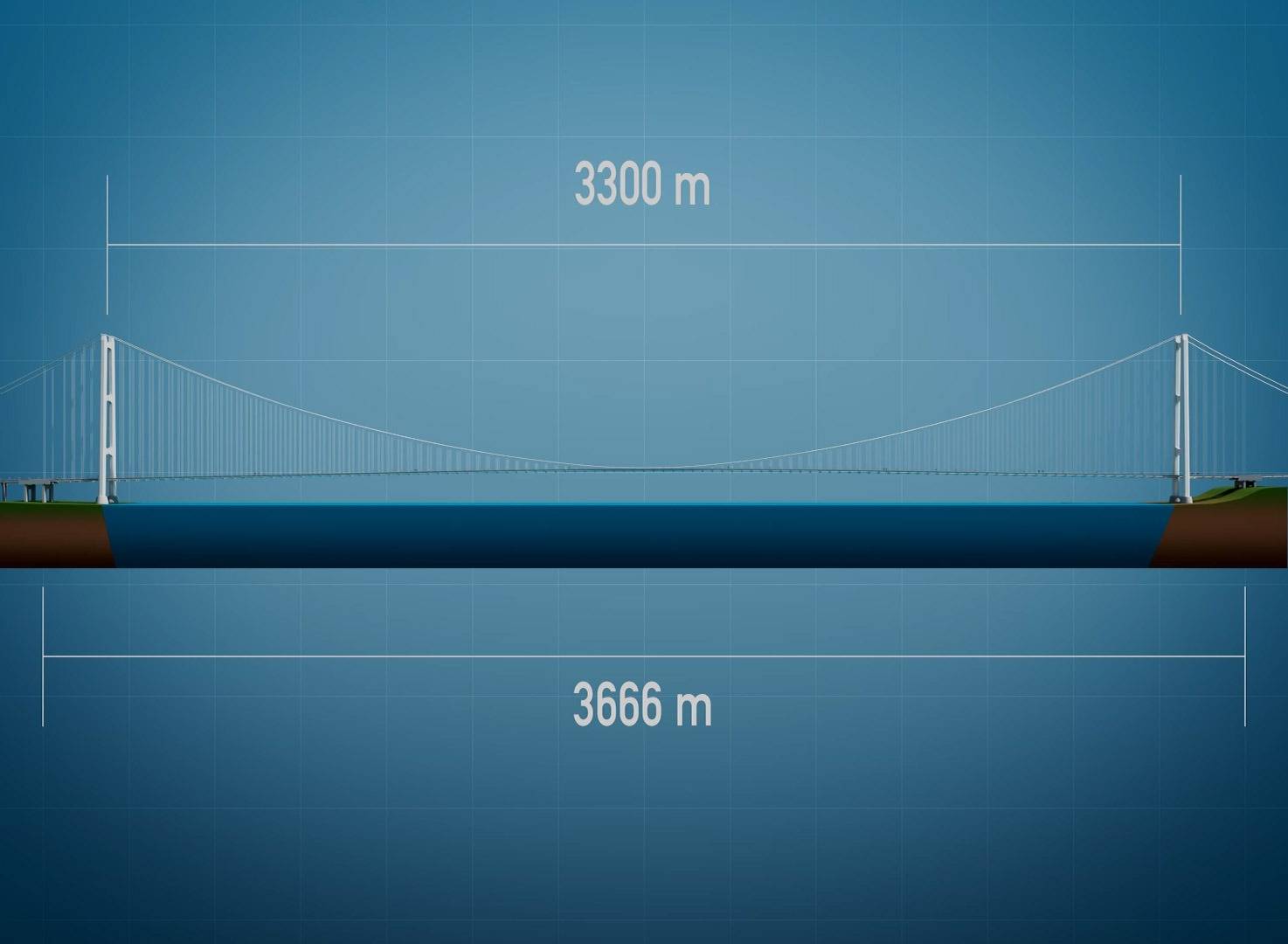

- Length of the central span: 3,300 metres

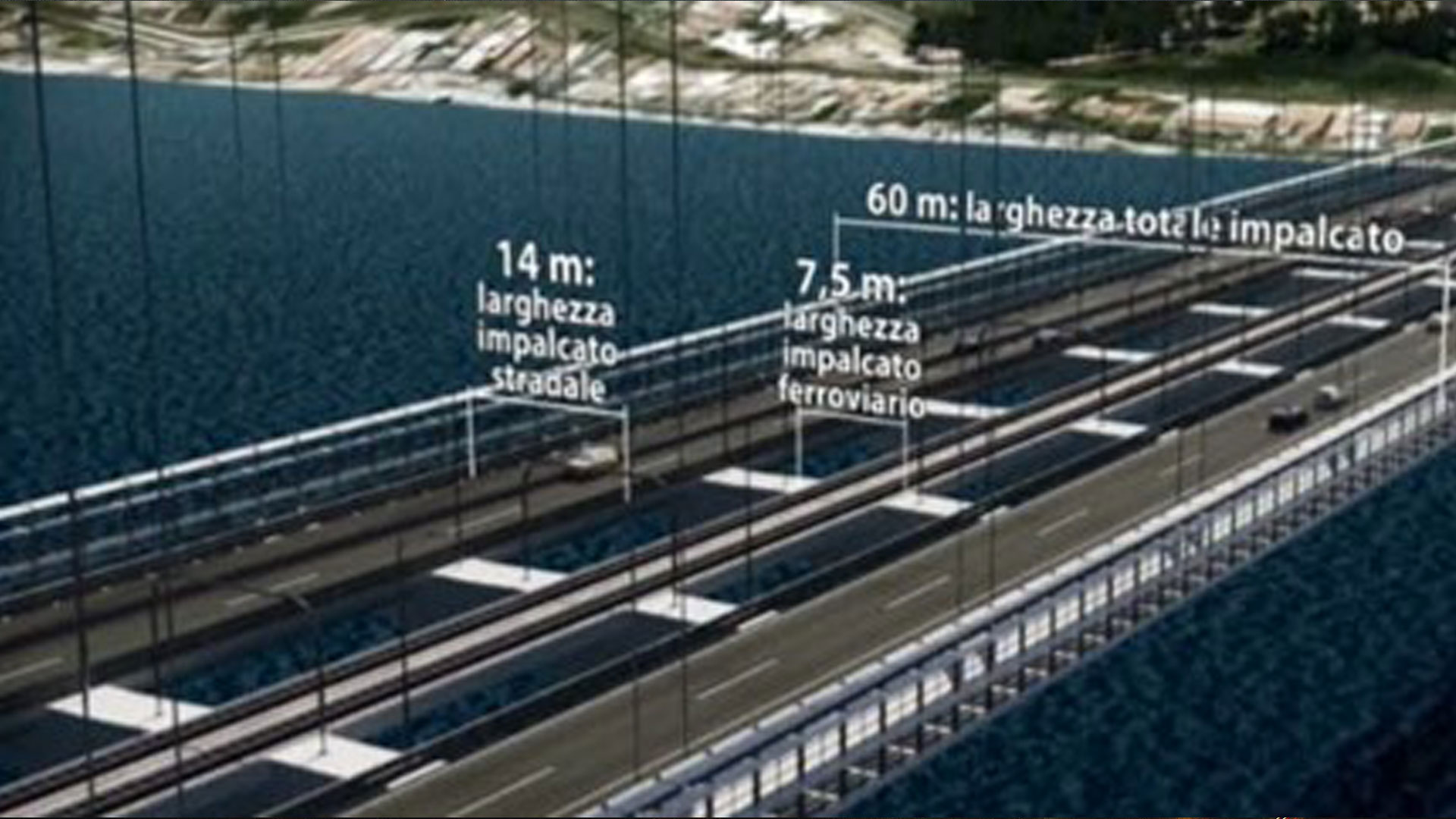

- Width of the rail deck: 7.5 metres

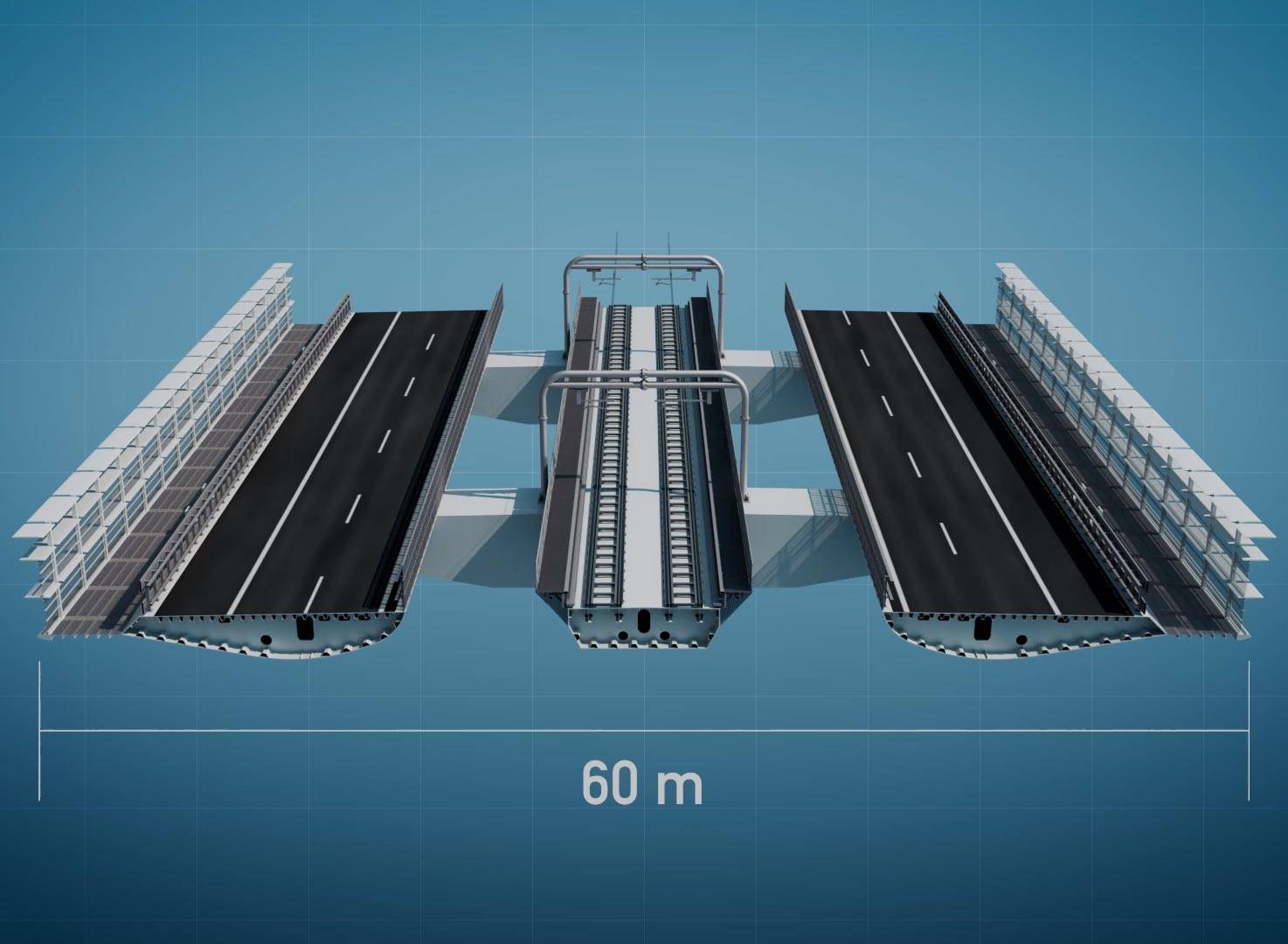

- Width of the road deck: 14.2 metres
- Use of an embedded rail with a lower weight than traditional solutions, limiting noise emissions

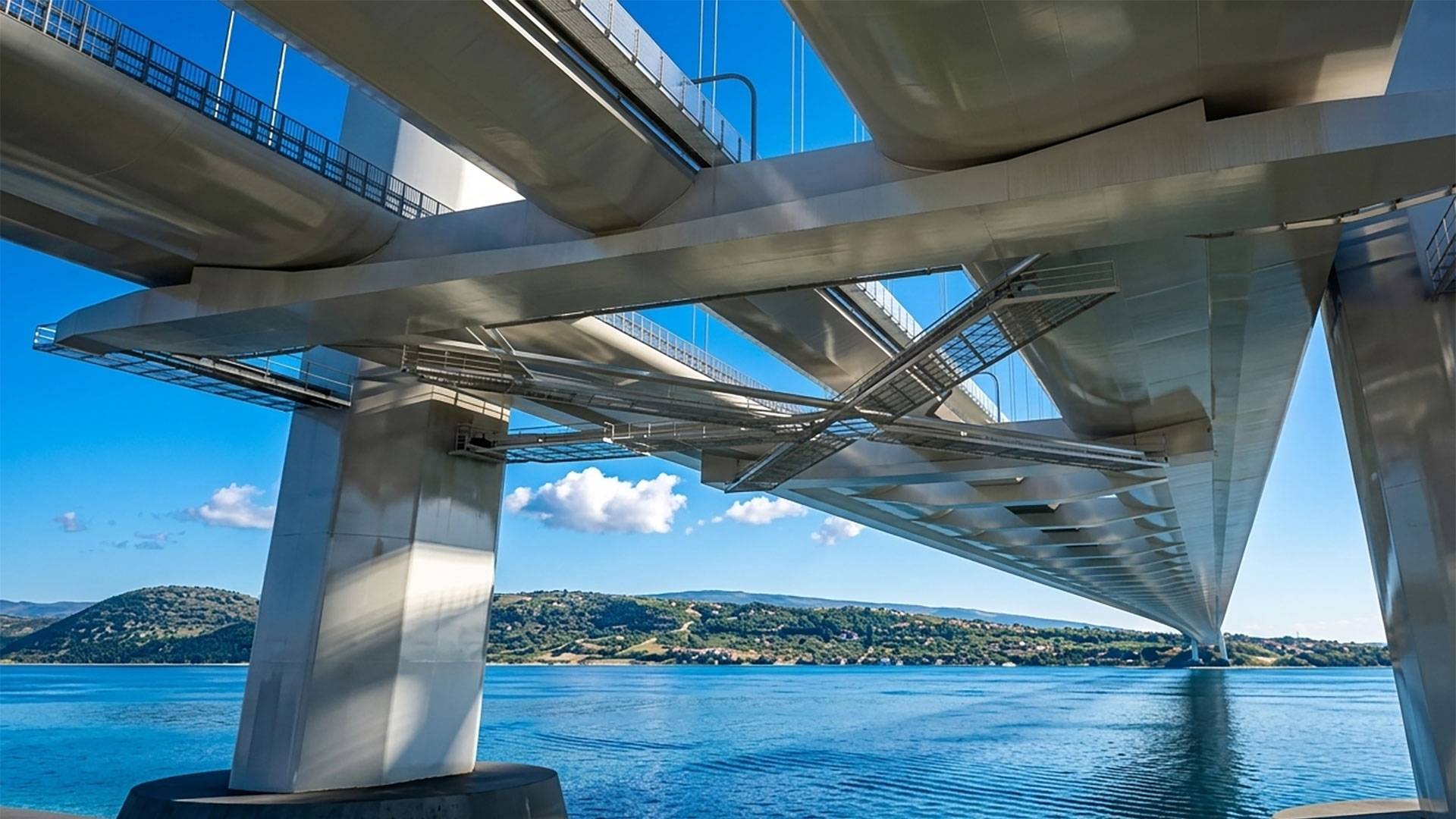

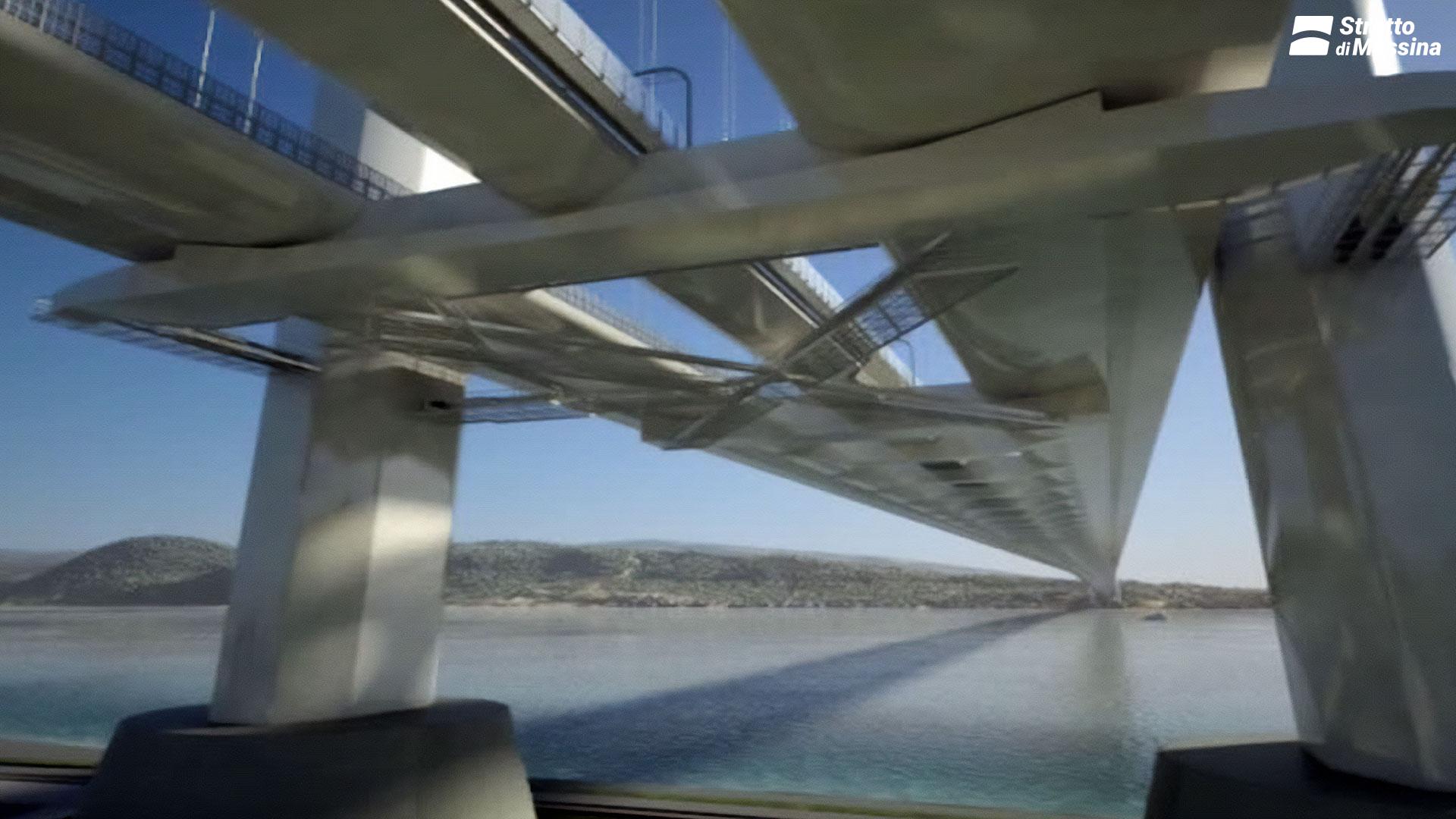

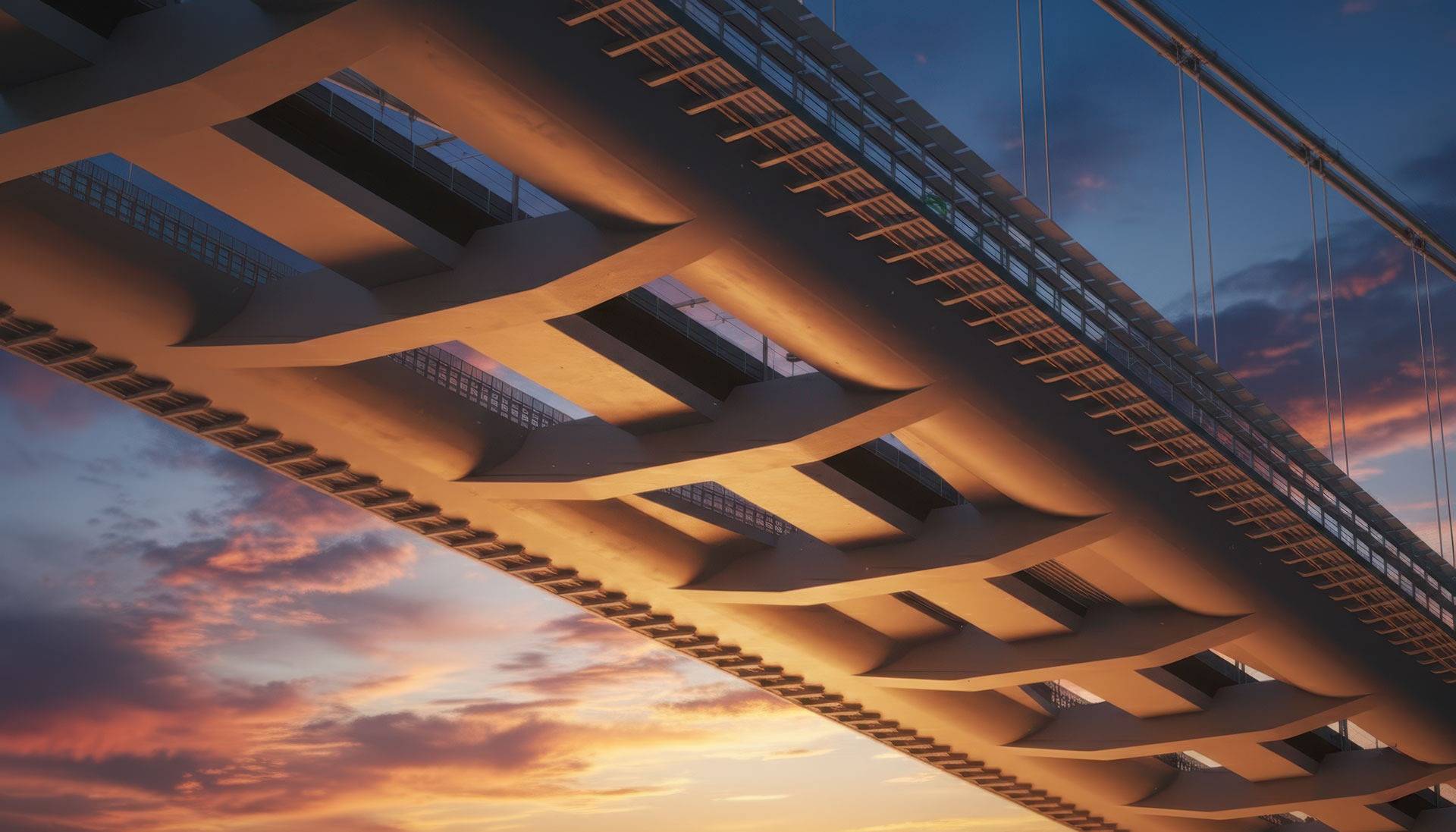

THE DECK IN PICTURES

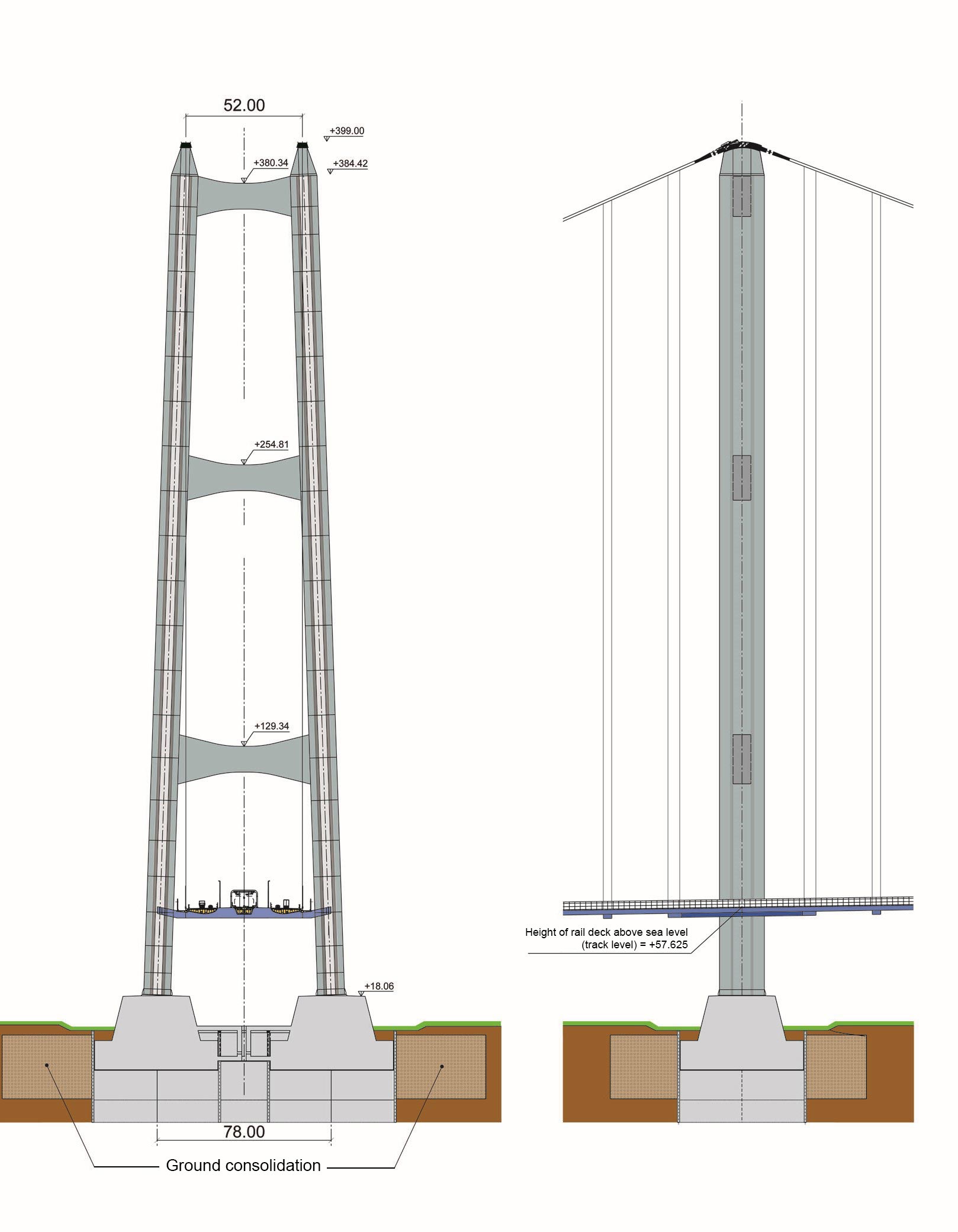

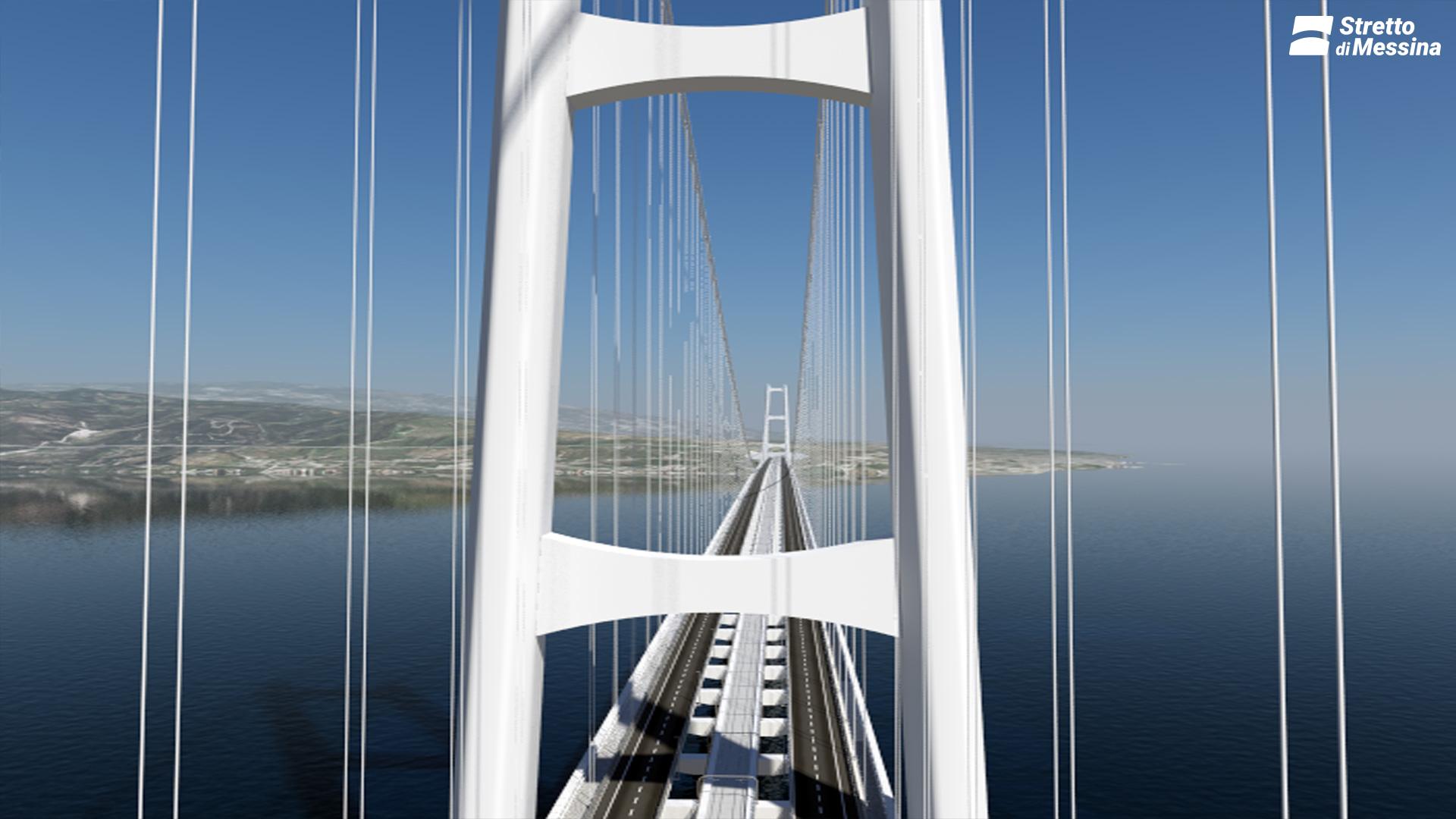

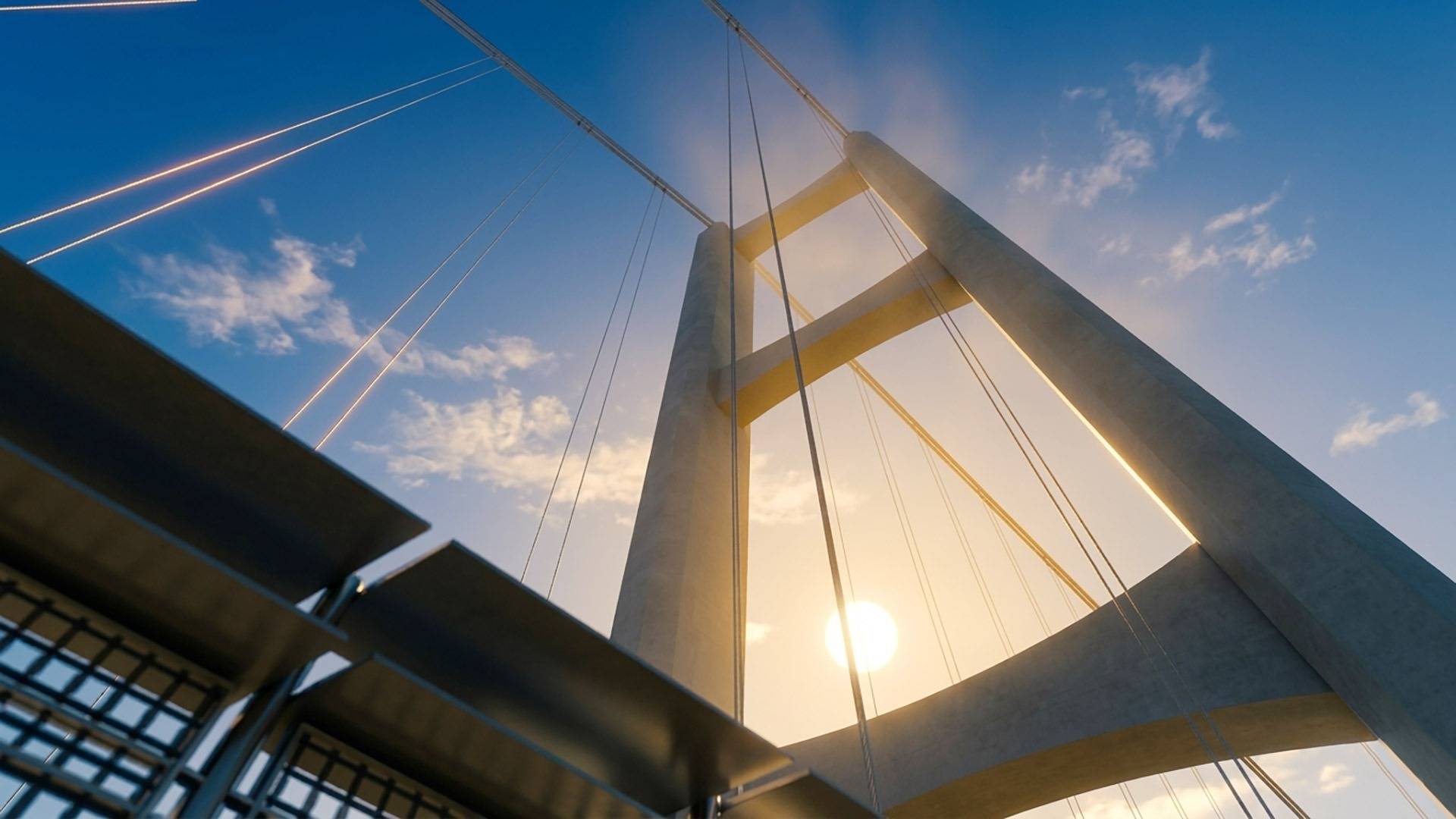

THE TOWERS
- Two metal towers each one having 2 legs linked by 3 crossbeams
- Height: 399 metres
- Weight: 55,000 tonnes
- Structure of 1 tower: 2 legs consisting of 22 ashlars of variable height
- Ashlars: octagonal section of 20×12 metres, with a maximum height of 20 metres and weighing 1,200 tonnes. These are factory-produced, transported by sea and assembled on site
- Assembly: using a self-climbing system for each leg
- Foundations: 2 circular plinths in reinforced concrete linked by a crossbeam (diameters of 55 metres for the tower on the Sicilian side and 48 metres for the tower on the Calabrian side)
SUSPENSION SYSTEM

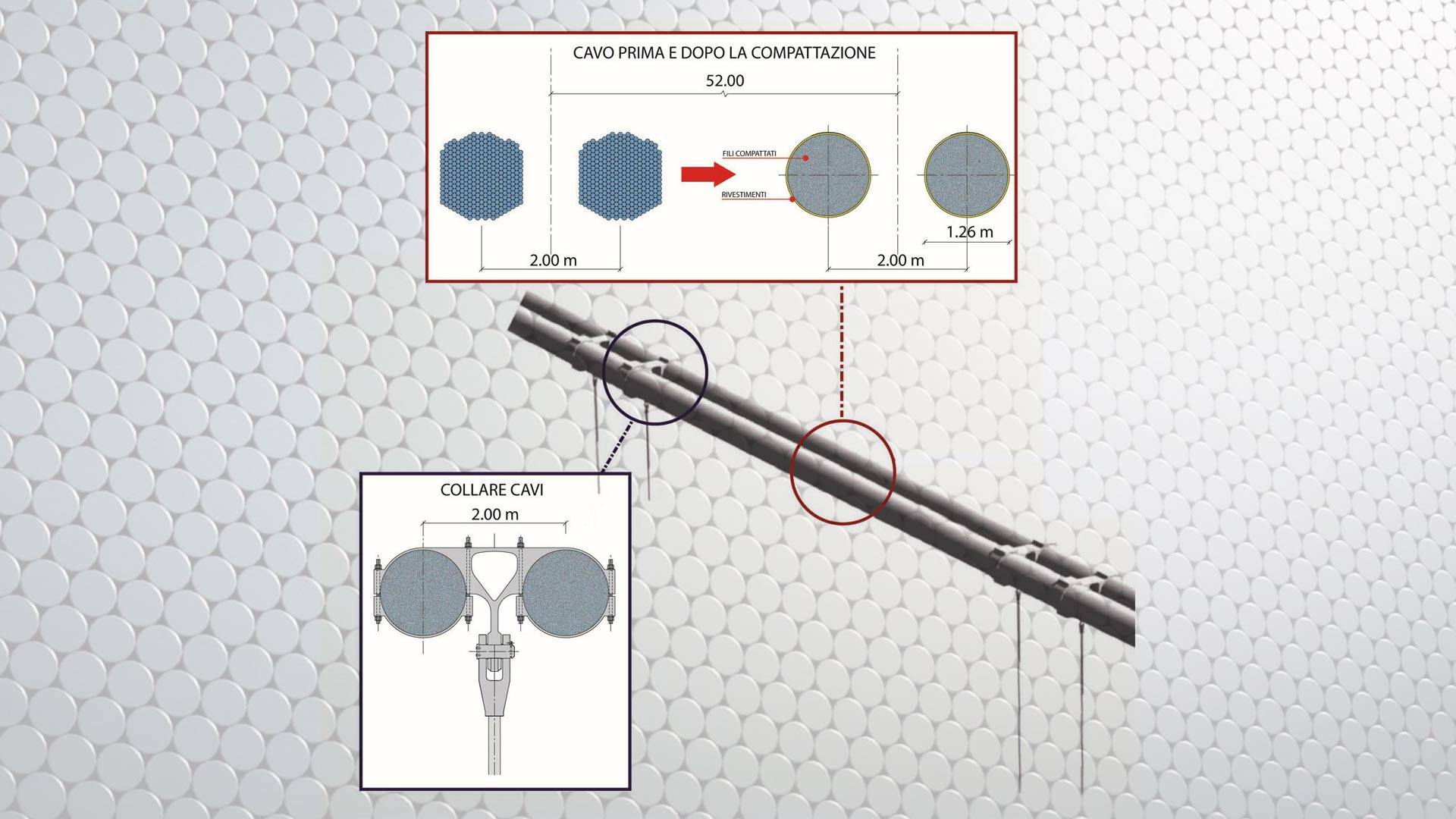

2 cable pairs with a diameter of 1.26 metres, measuring 5,320 metres between the two anchors

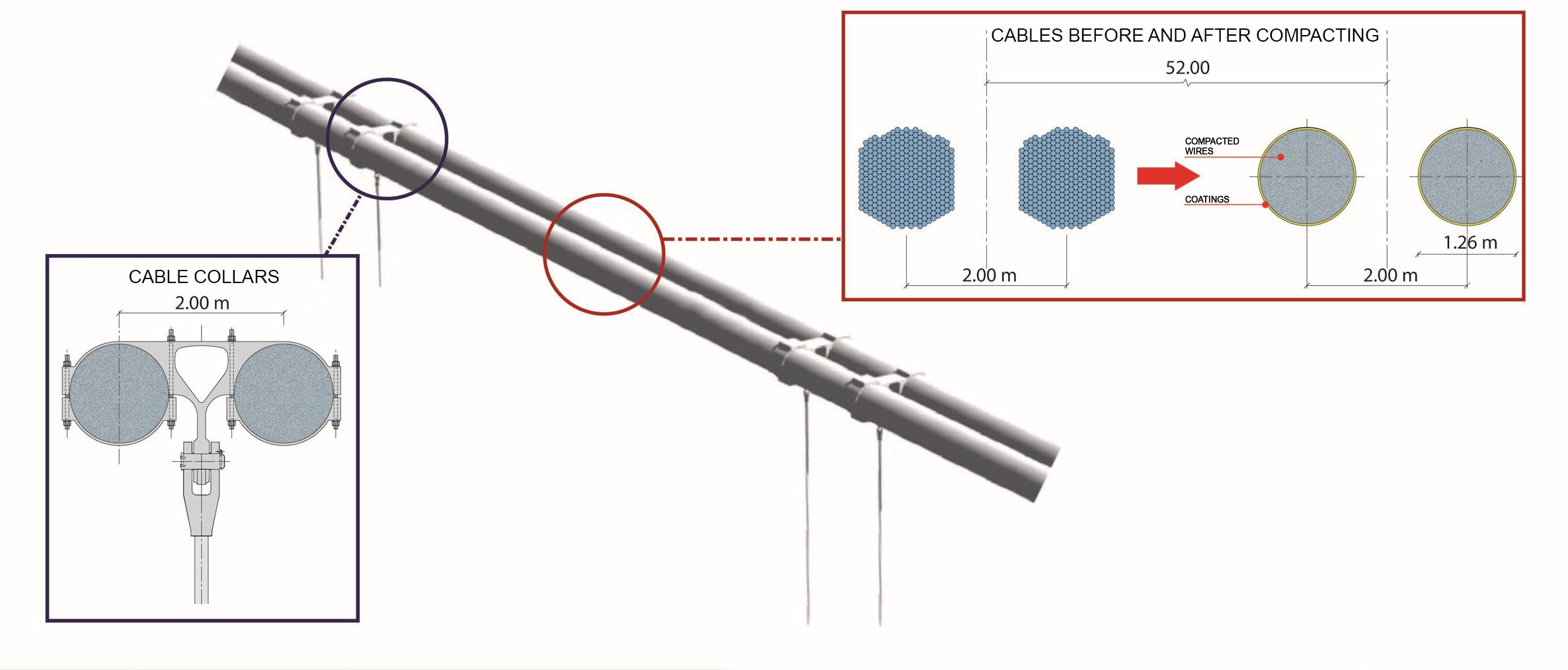

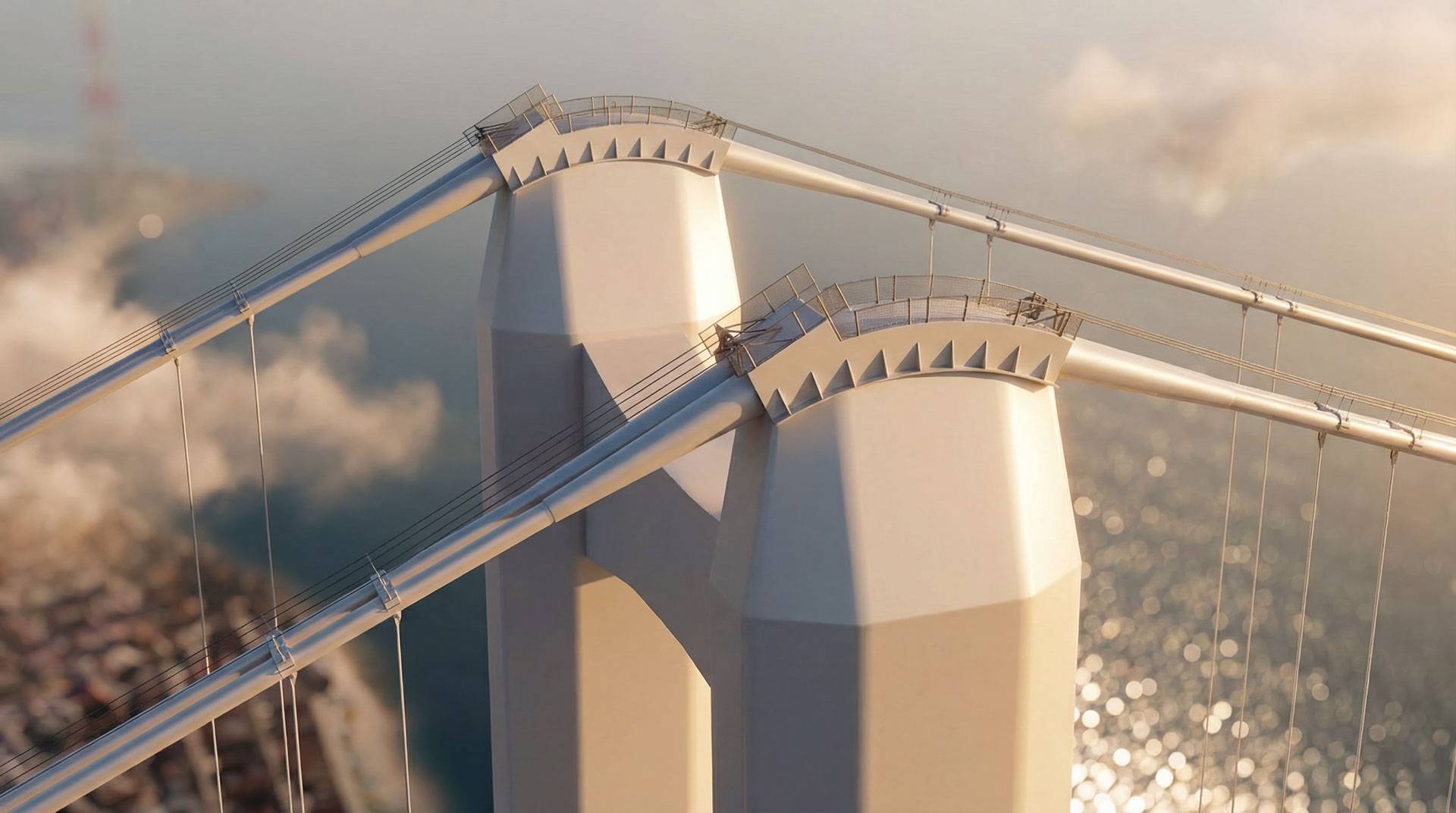

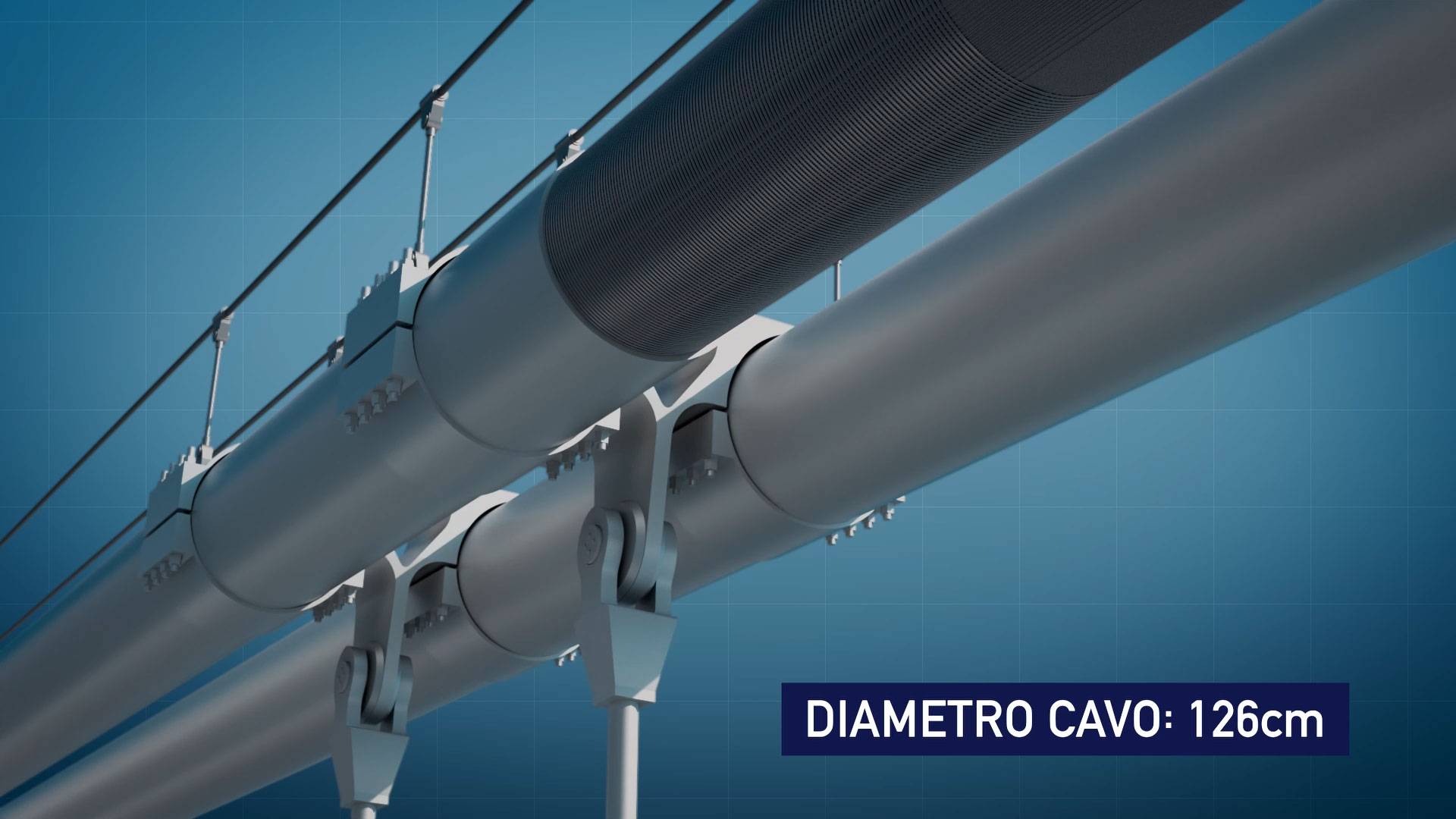

MAIN CABLES

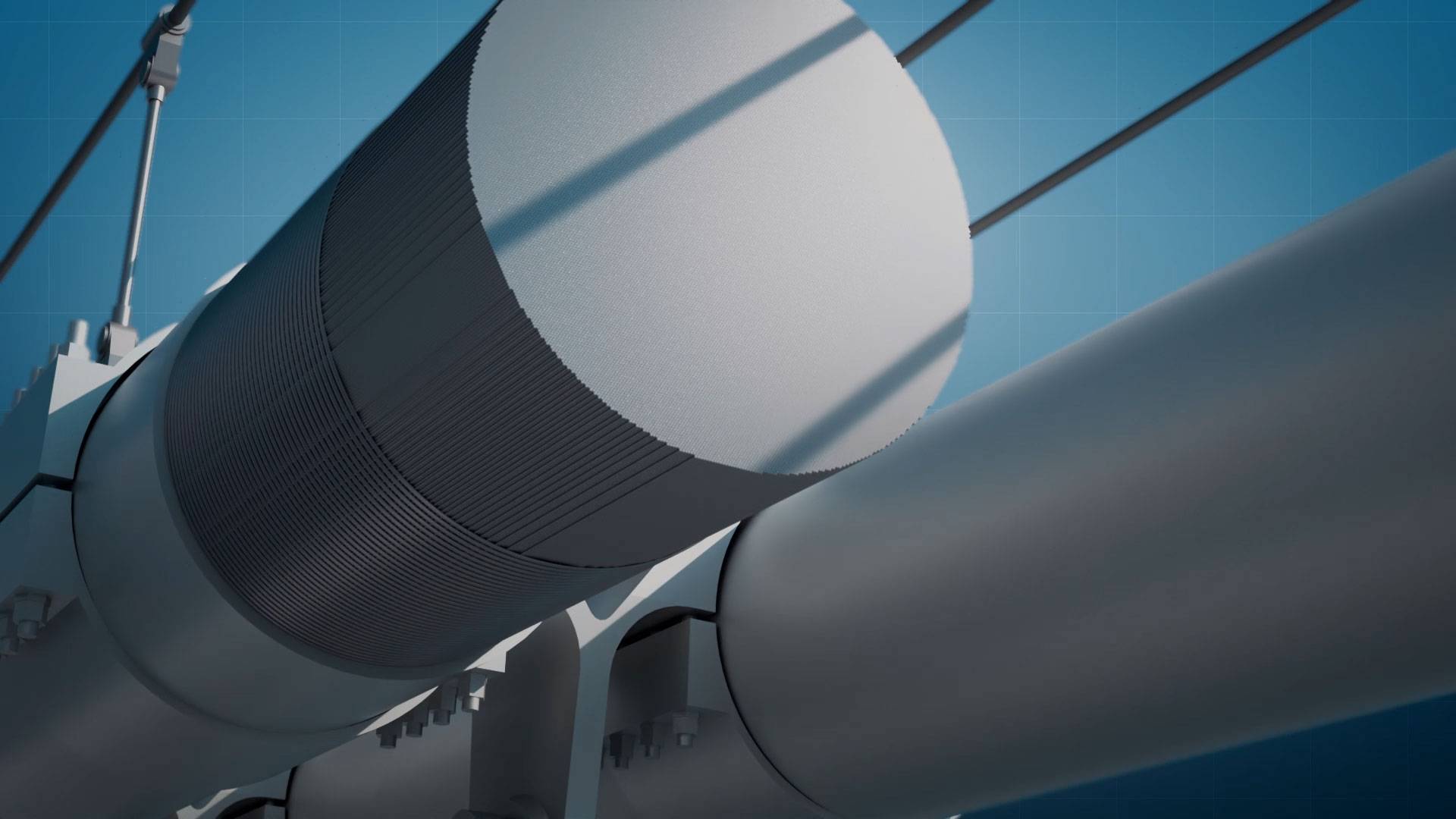

- 2 cable pairs in high-resistance steel placed at a distance of 52 metres: each cable consists of prefabricated parallel wire strands
- cable diameter: 1.26 metres
- each cable consists of 349 prefabricated strands made up of 127 wires

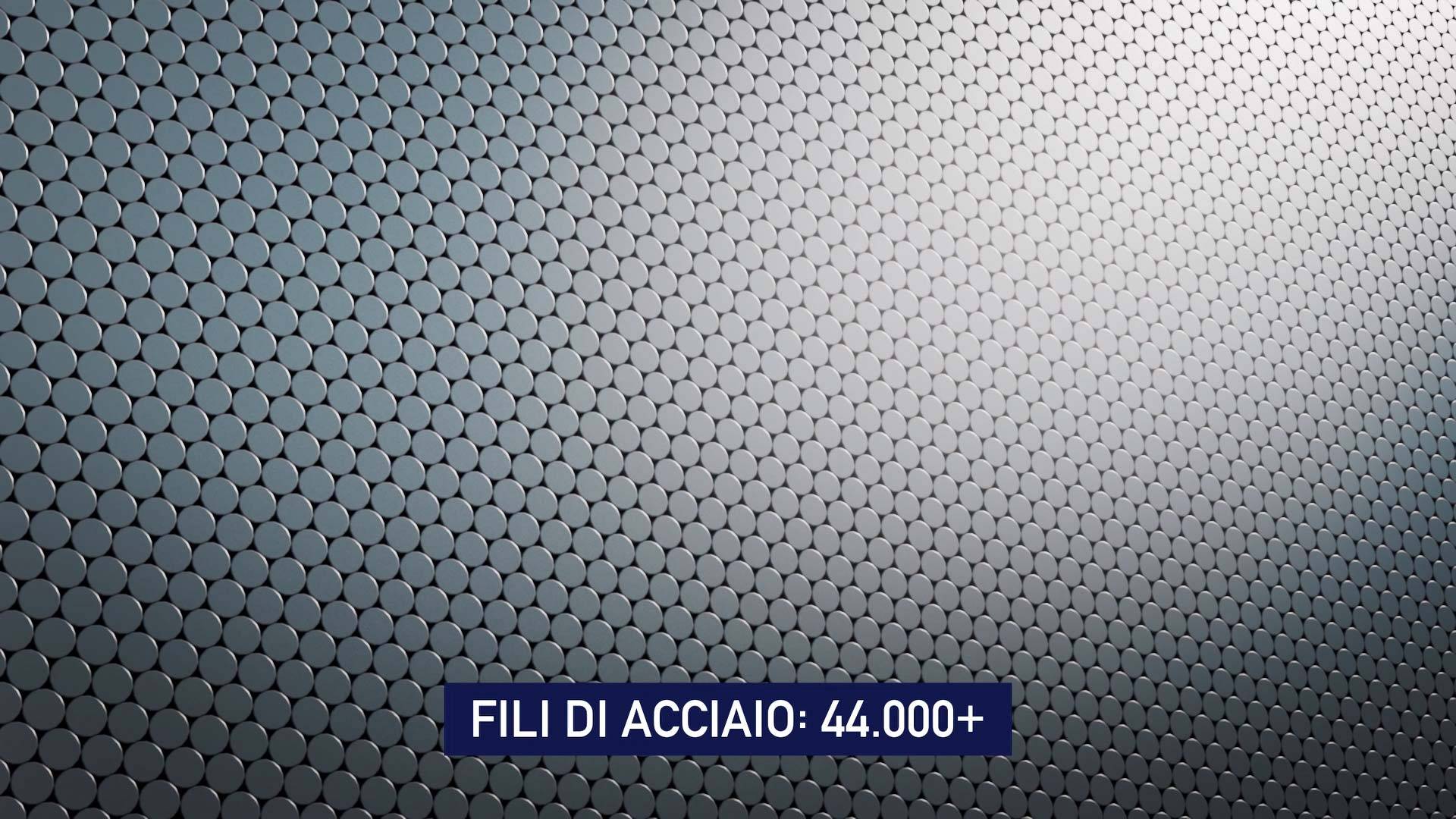

- a total of 44,323 wires for each cable
- length of strands: approximately 5,300 metres
- total weight of the 4 cables: approximately 170,000 tonnes
WIRES
The system of wires consists of high-resistance vertical steel strands supporting the deck on both sides, connecting it every 30 metres with the main cable pairs.

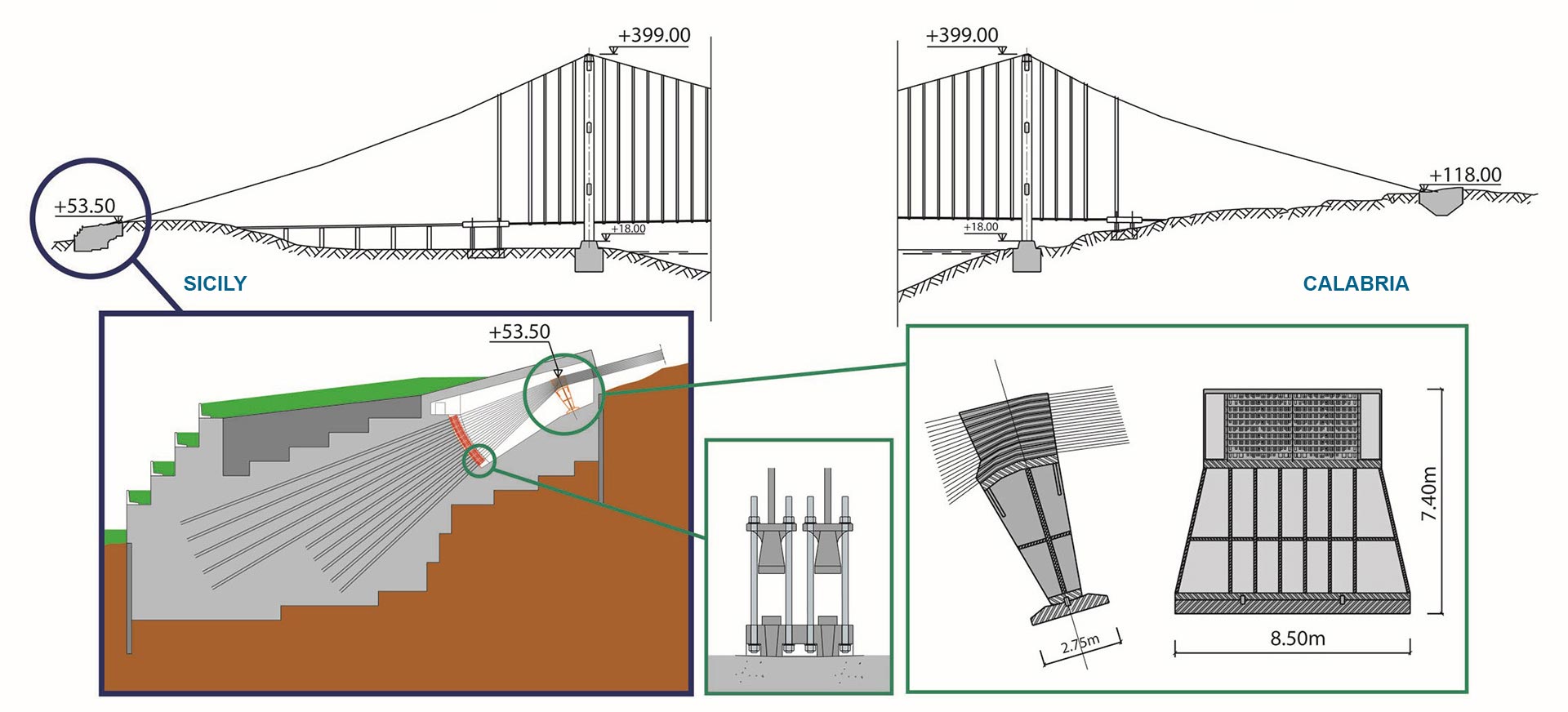

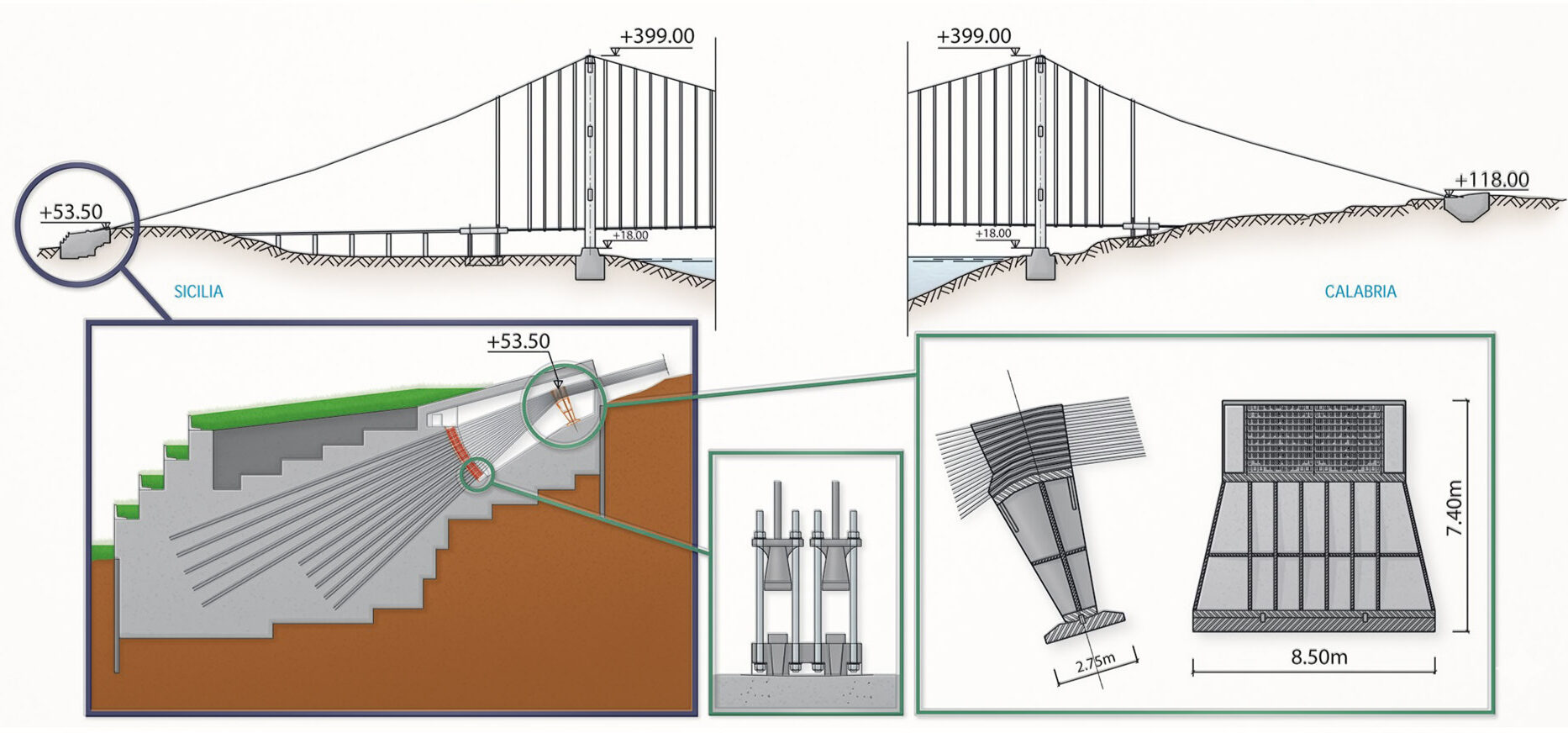

ANCHOR BLOCKS
The anchor blocks are very large in size but have a minimal visual impact.
The total volume is 533,000 ㎥, but only 17% of the volume is above ground. The main cables are fixed to the block using steel plates anchored to the concrete using looped, post-stressed tie rods.
Il franco navigabile
Il franco navigabile del ponte sullo Stretto di Messina è di 72 metri per una larghezza di 600 metri e raggiunge i 70 metri in presenza di condizioni di traffico ordinario, ovvero con pieno carico delle corsie stradali e due treni passeggeri in contemporanea.
Questi parametri sono in linea con i ponti esistenti sulle grandi vie di navigazione internazionali, in coerenza con le procedure stabilite dalle norme IMO (International Maritime Organization).

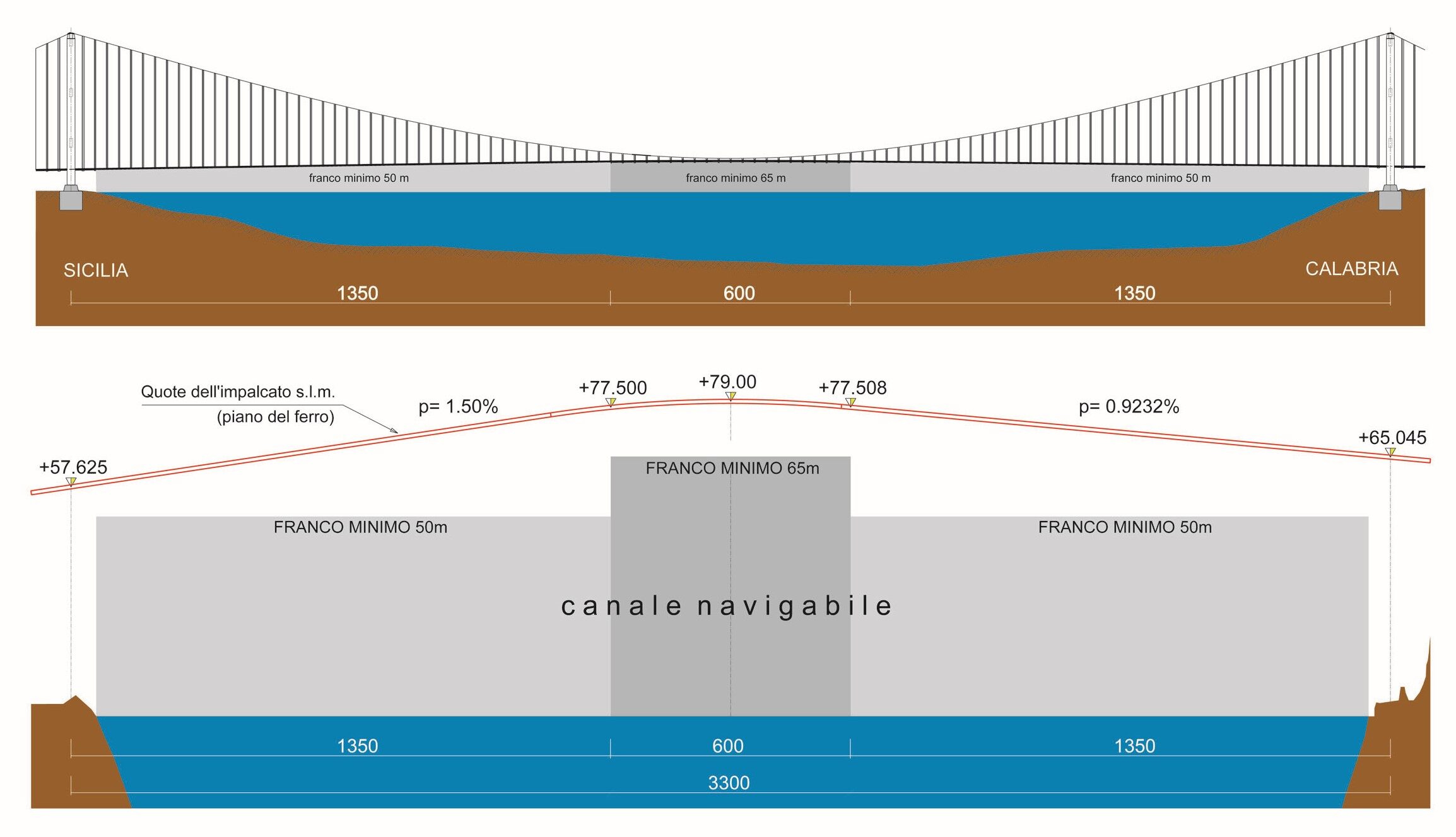

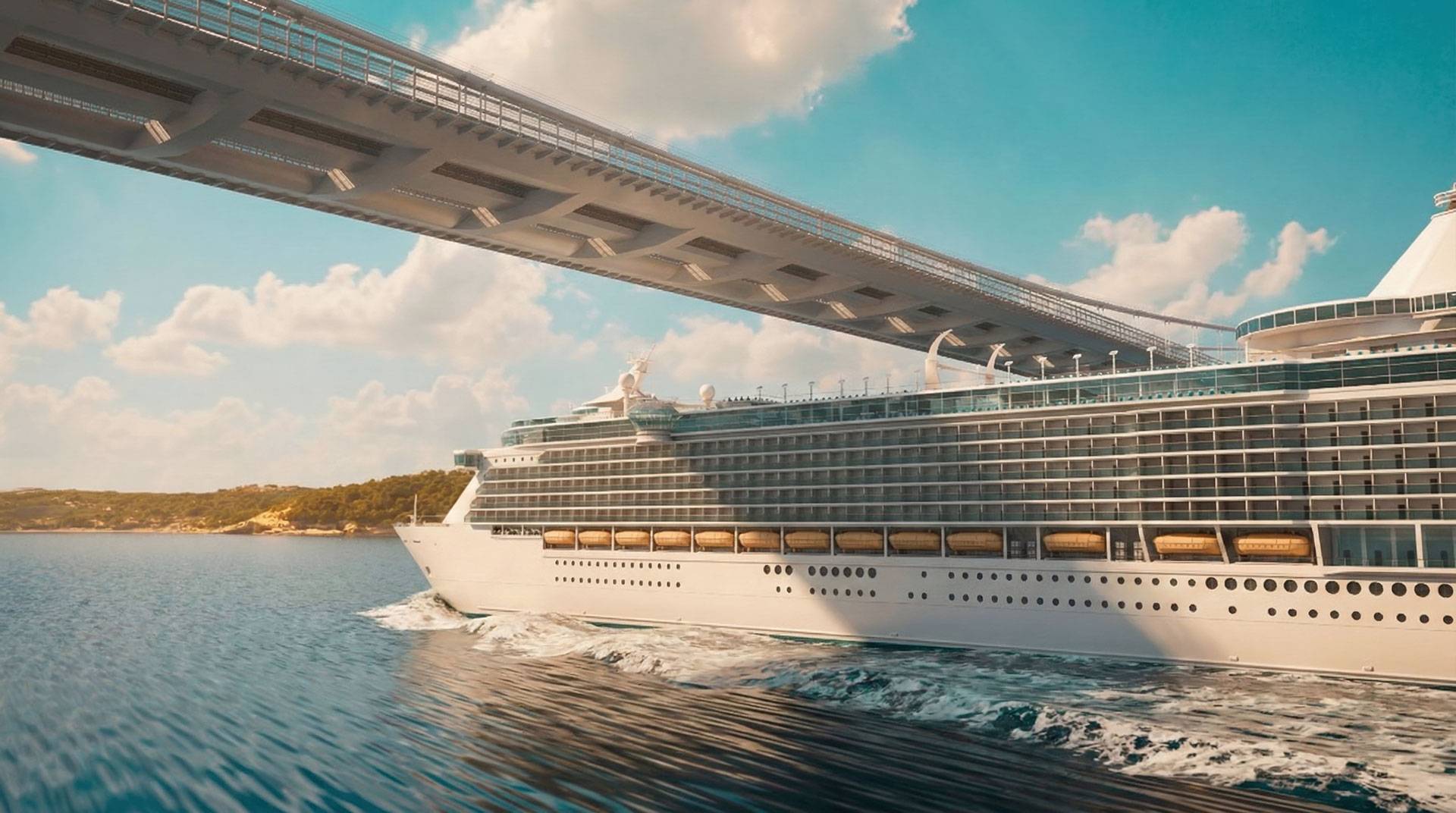

NAVIGATION CLEARANCE

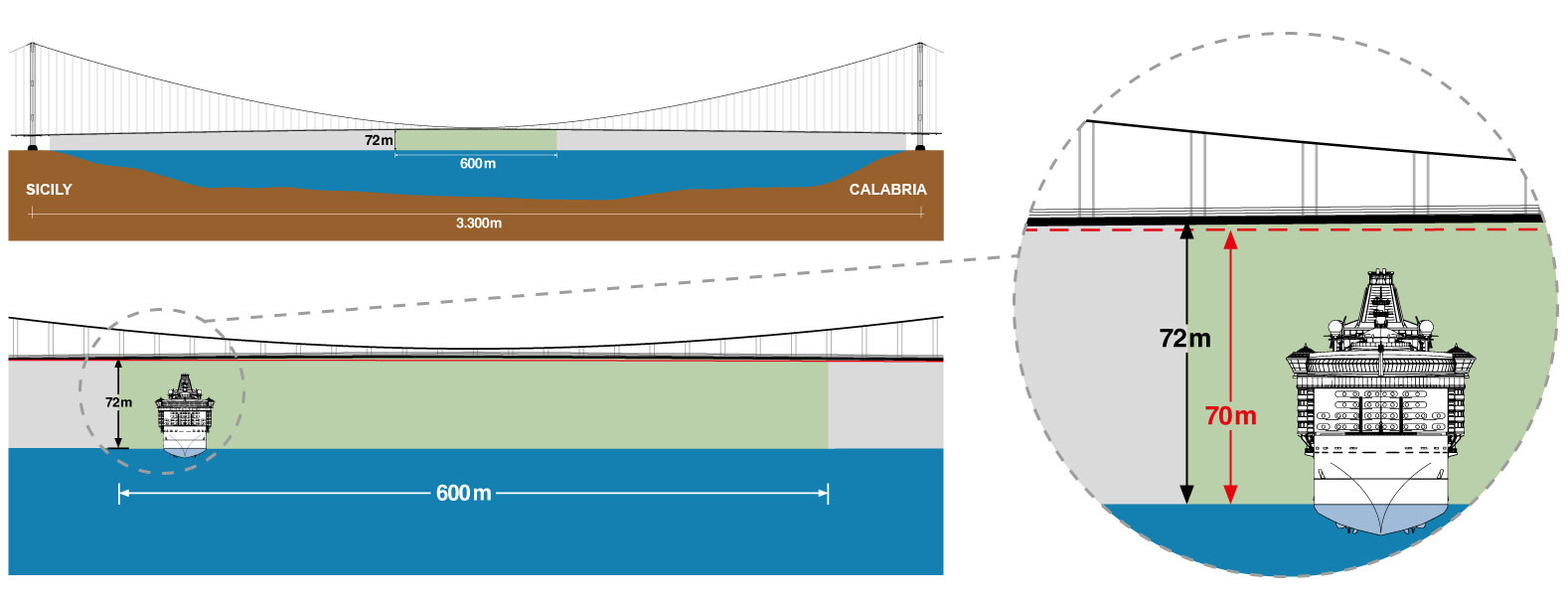

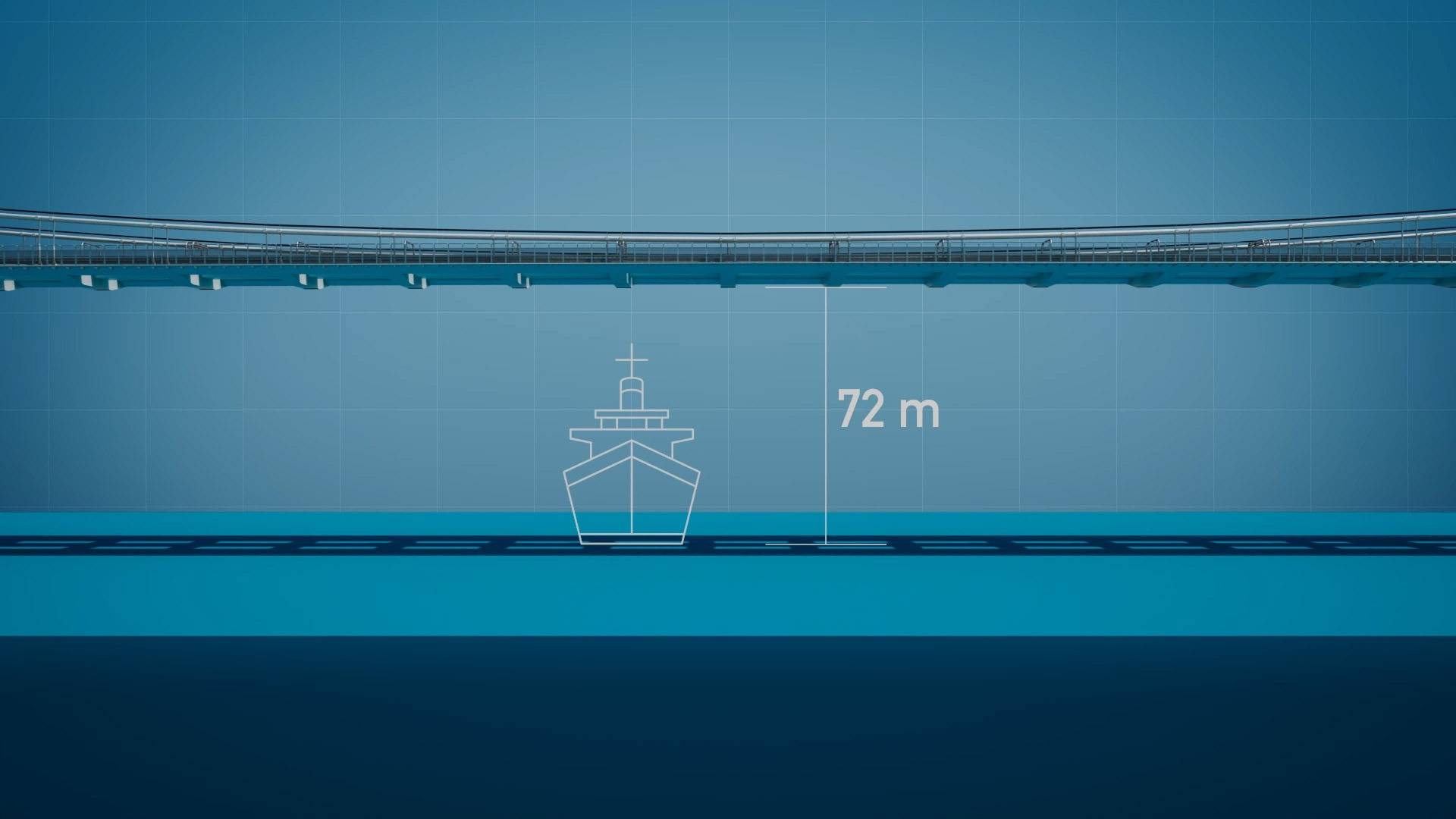

The Strait of Messina Bridge’s navigation clearance is 72 metres over a width of 600 metres and reaches 70 metres under road and rail traffic conditions, i.e. full load of roadways and simultaneous transit of two trains.
These measurements are in line with bridges crossing major international shipping lanes, in accordance with the procedures laid down by IMO (International Maritime Organization) regulations.

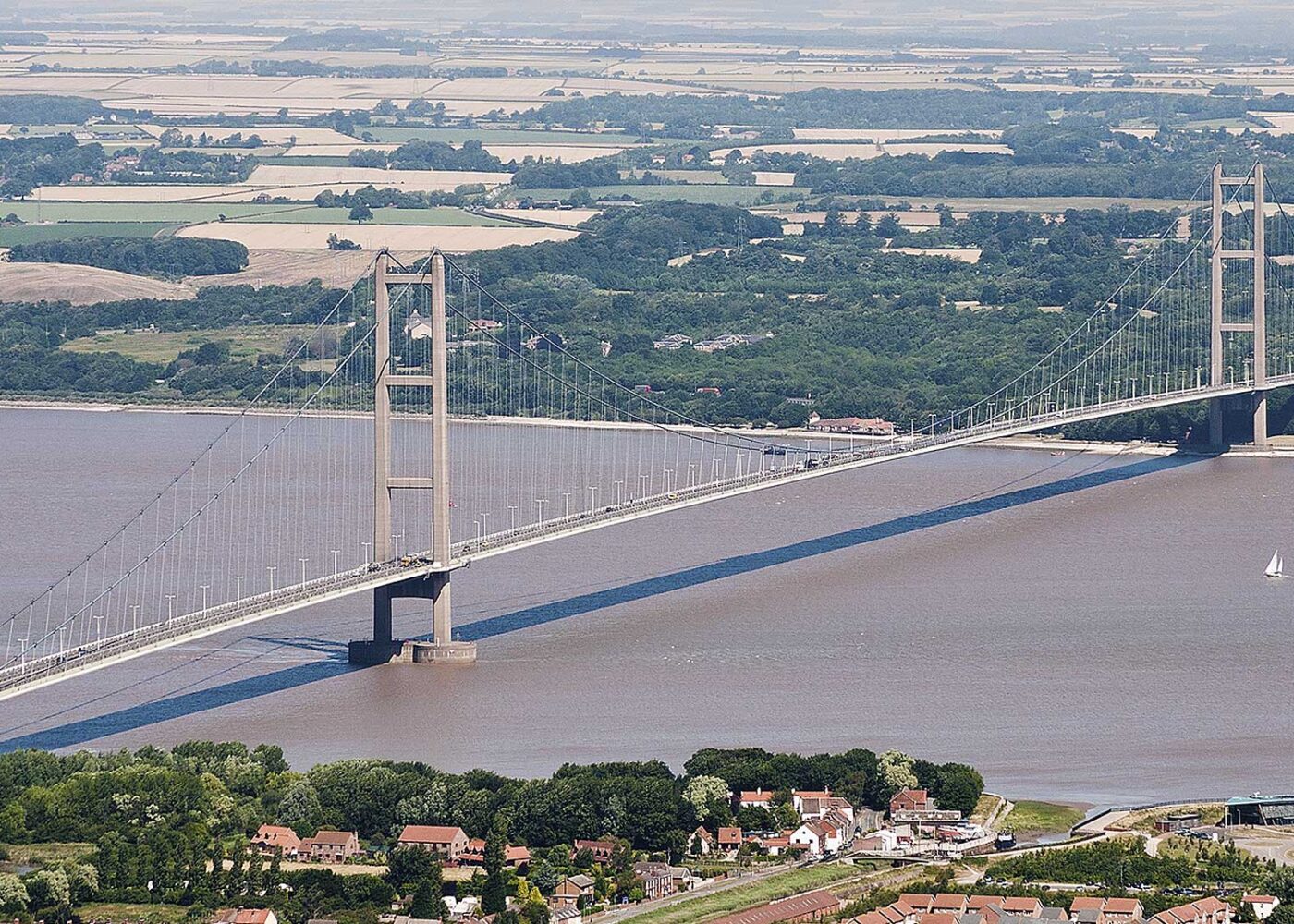

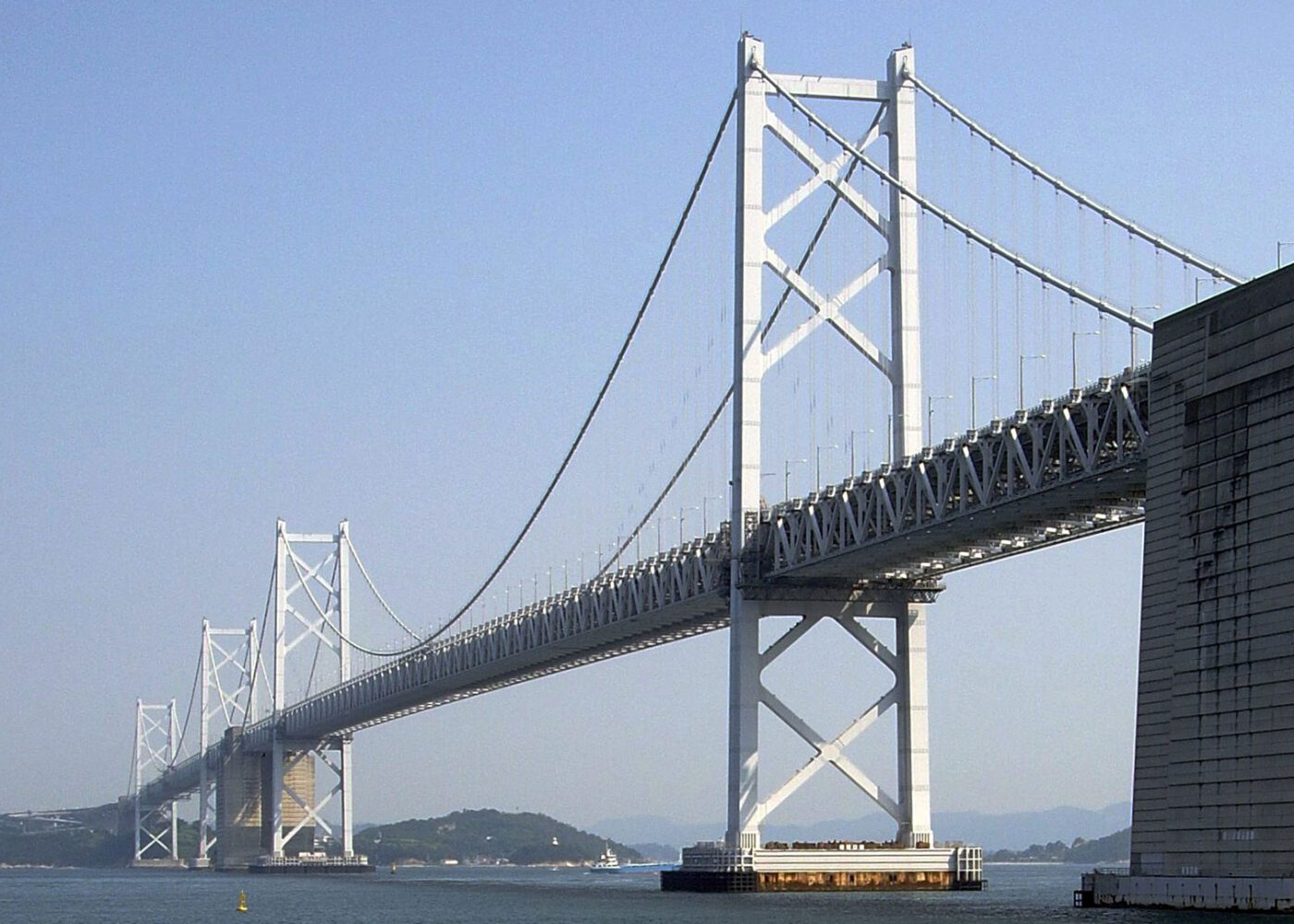

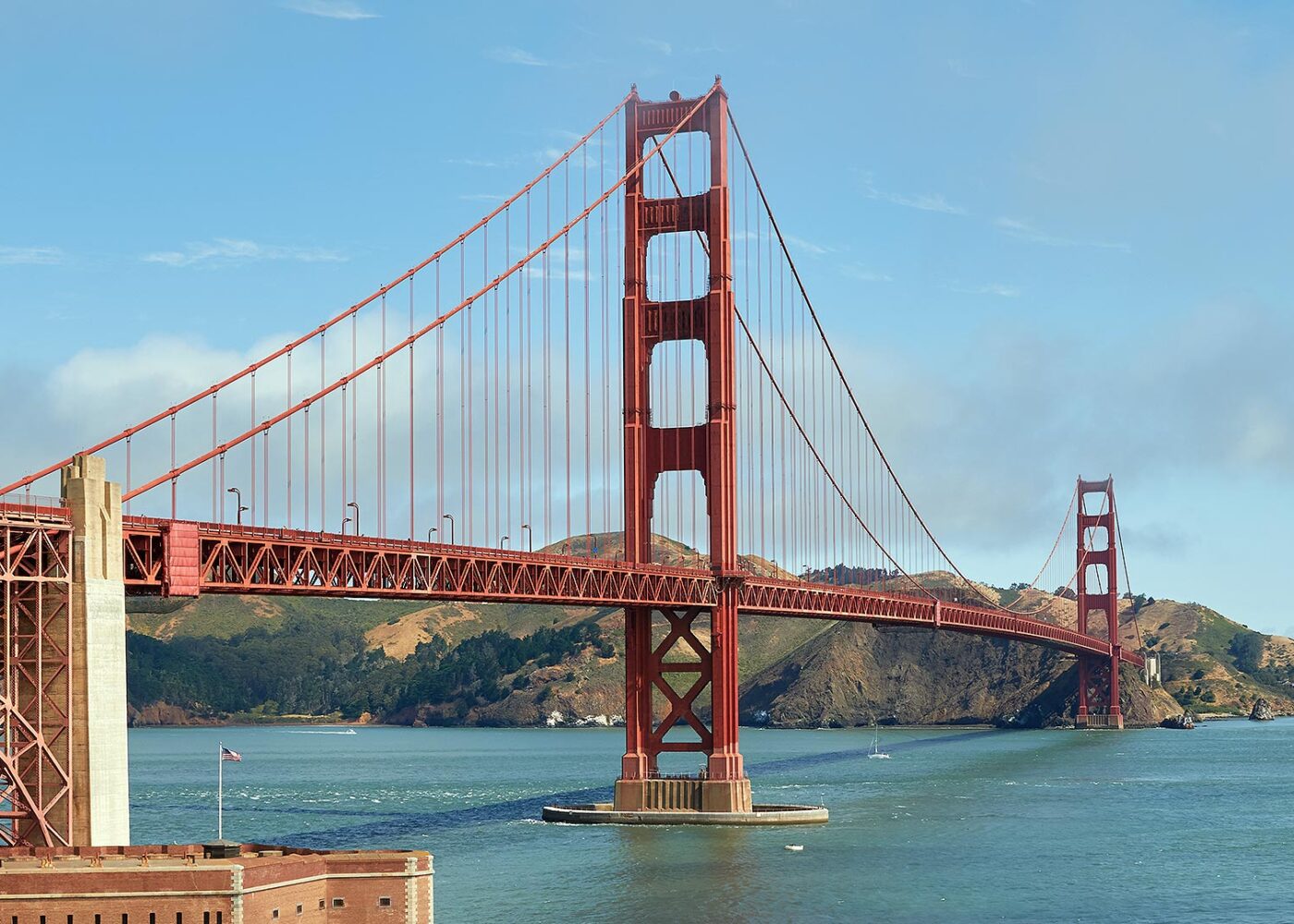

NAVIGATION CLEARANCE FOR BRIDGES OVER MAJOR SHIPPING LANES
RECORDS AND BENCHMARKS SET BY THE BRIDGE
| Strait of Messina Bridge | Current record | ||
|---|---|---|---|
| Central span | 3.300 m | 2.023 m 1.991 m | Dardanelles Strait Bridge (TR) Akashi Bridge (J) |
| Deck width | 60,4 m | 41 m | Tsing Ma Bridge (HK) |
| Tower height | 399 m | 318 m | Dardanelles Strait Bridge (TR) |
| Number of cables in the suspension system | 4 | 2 | Akashi Bridge (J) |
| Diameter of suspension cables | 1,26 m | 1,12 m | Akashi Bridge (J) |
| Steel wires per cable | 44.323 | 36.830 | Akashi Bridge (J) |
CURRENT BENCHMARKS

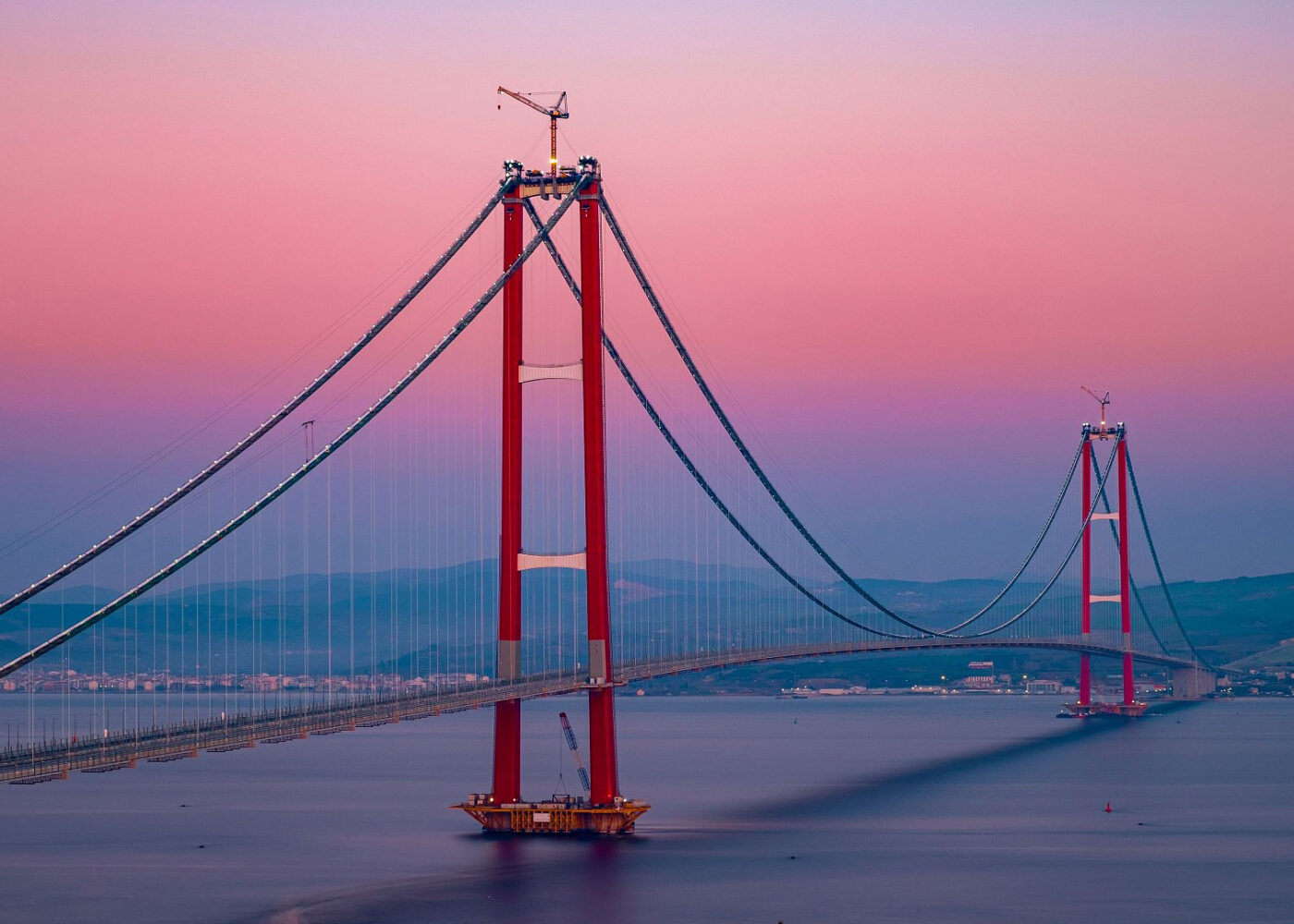

- Çanakkale Boğazı Köprüsü Dardanelles Strait Bridge (Turkey):

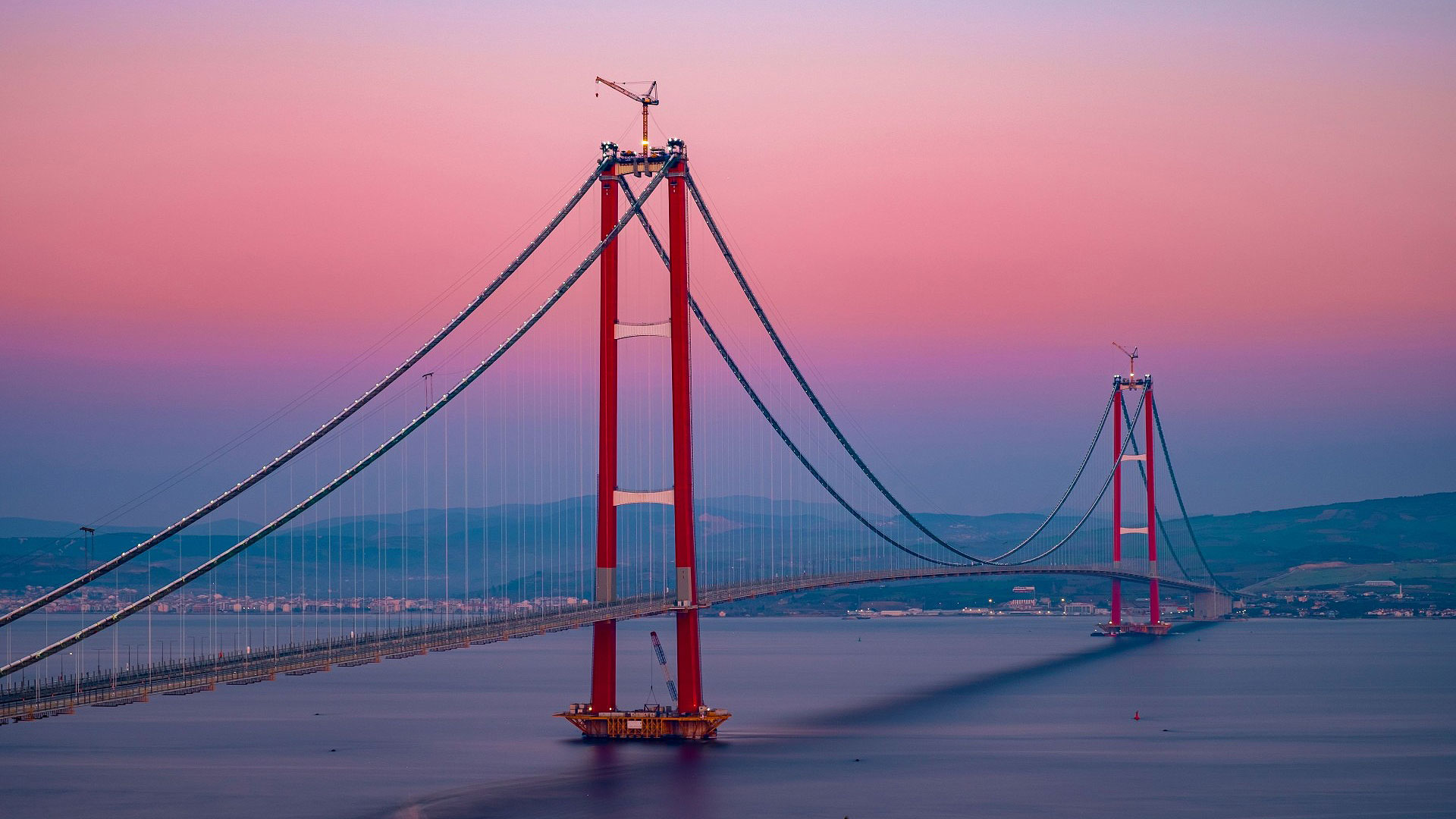

a road only suspension bridge with 3 lanes in each direction and a deck with a total length of 5,169 metres (central span of 2,023 metres) and towers 318 metres high - Akashi Bridge (Japan):

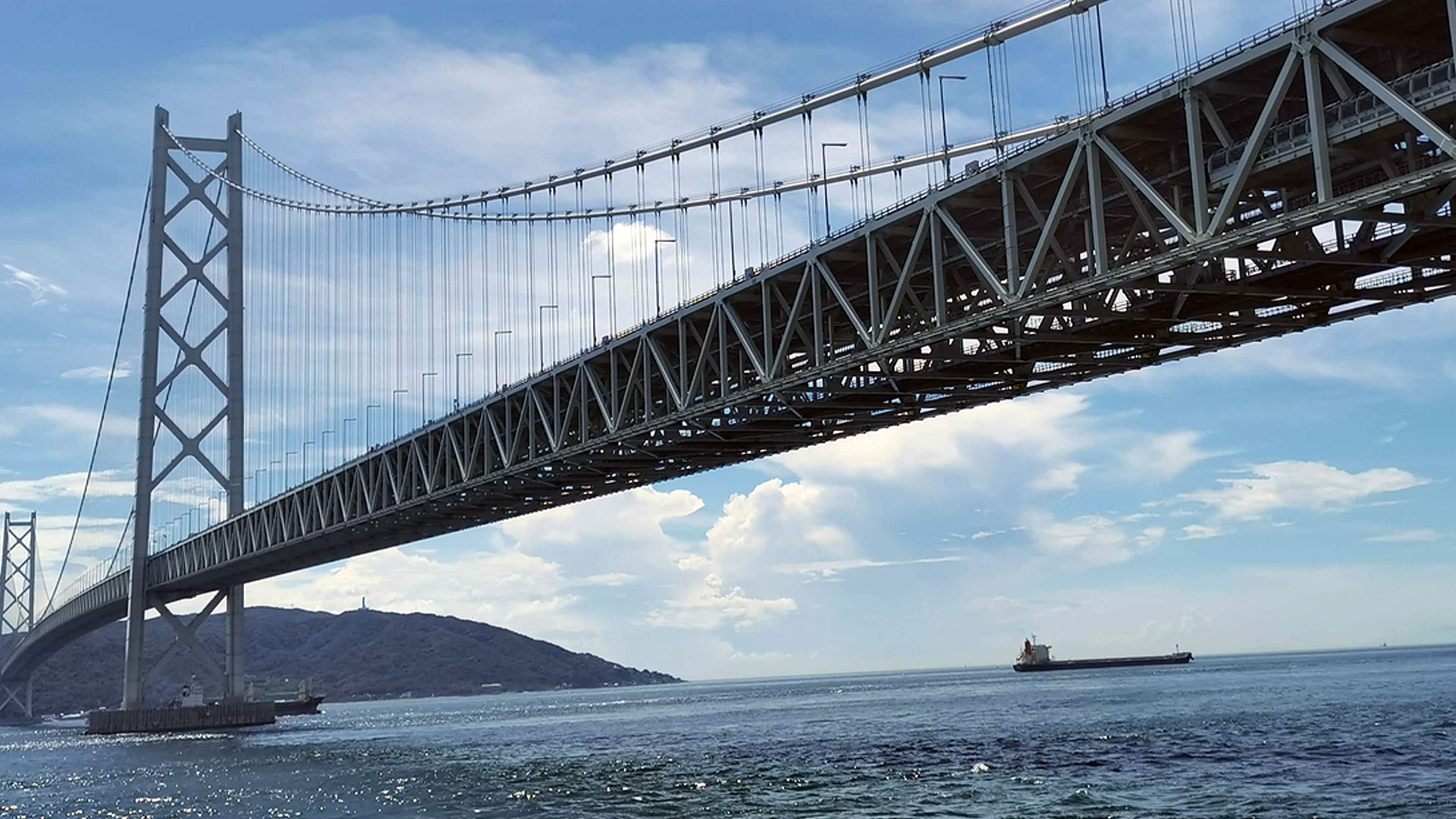

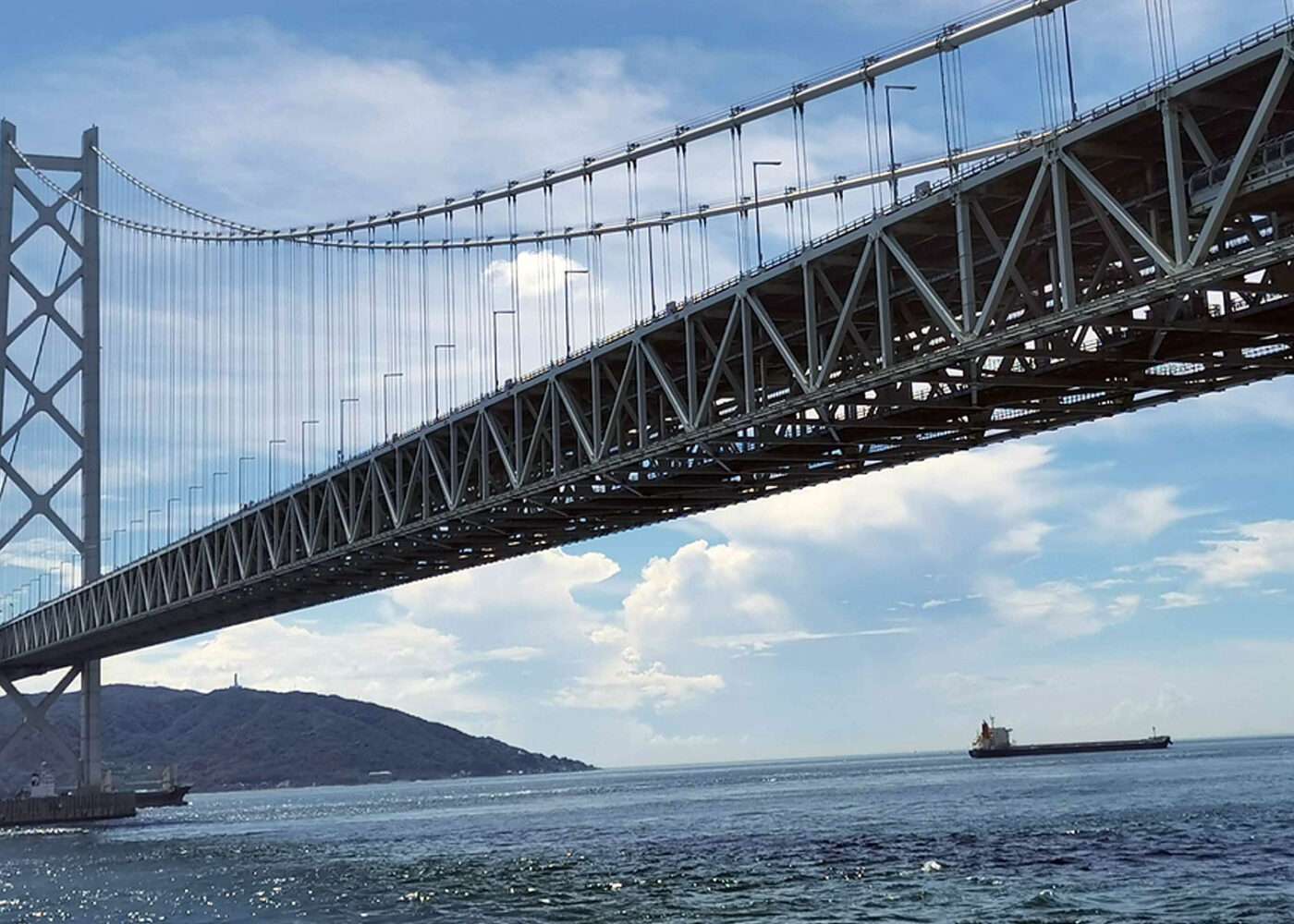

a road only suspension bridge with 3 lanes in each direction and a deck with a total length of 3,911 metres (central span of 1,991 metres) and towers 283 metres high - Tsing Ma Bridge (Hong Kong):

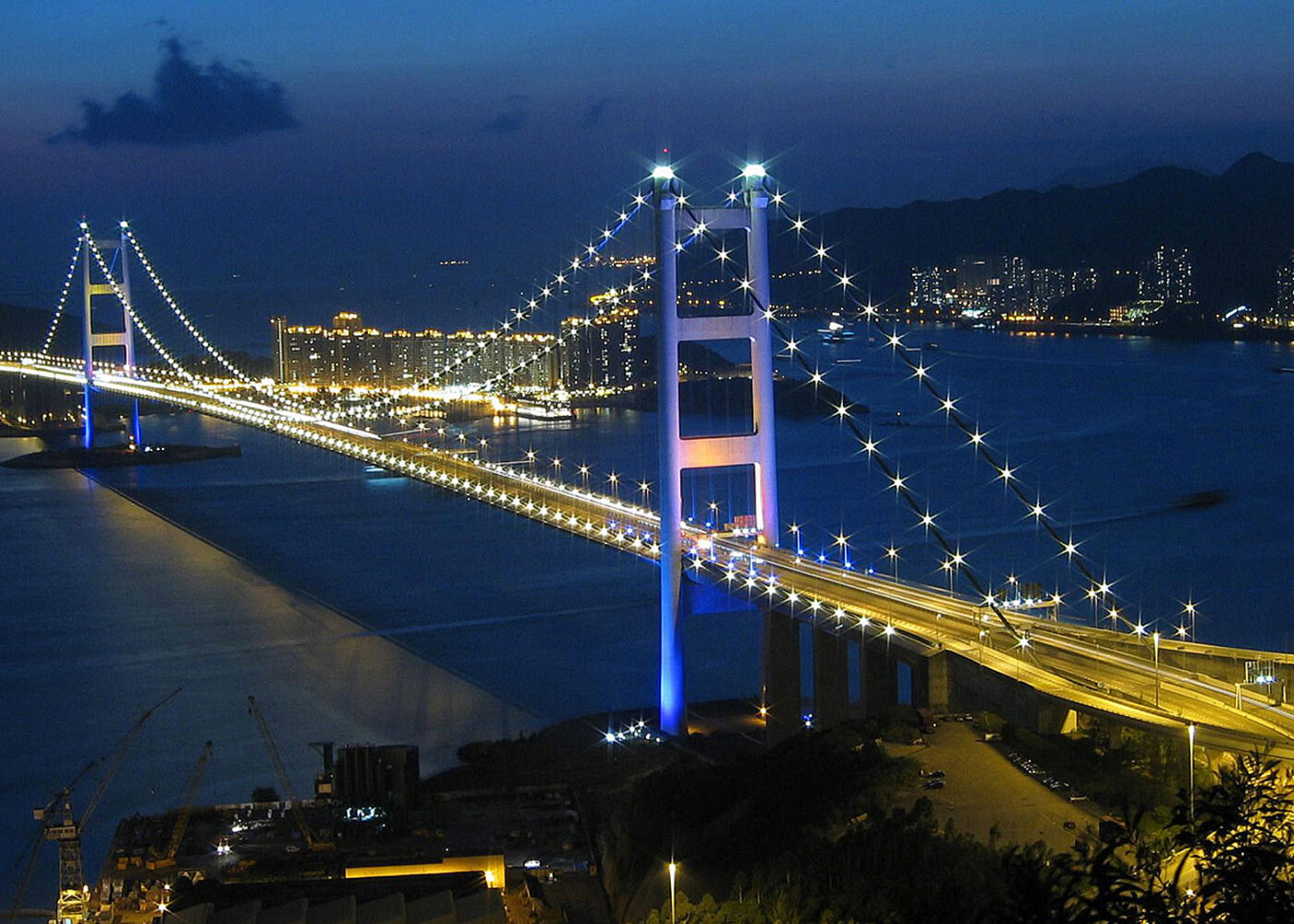

a suspension bridge with the longest deck carrying road and rail traffic, having a central span of 1,377 metres and towers 206 metres high, it is the first major bridge with capacity for 6 road lanes and 2 rail tracks
